Suitable to Process | Galvanized steel strip/black steel strip |
Width of raw material | customized |
Rollers | GCr15 |
Dimensions | About 8000*1150*1400mm |
Power | 11+5.5kw |
Thickness of sheet | 1.5–3.0mm as usual; customized |
Material of cutting blade | Cr12 |
Diameter of the roller | customized |
Voltage | 380V, 50Hz, 3 phrases; customized |
weight | About 5.5T |
Productivity | 0—-15m/min |
Control system | Automatically controlled by computer |

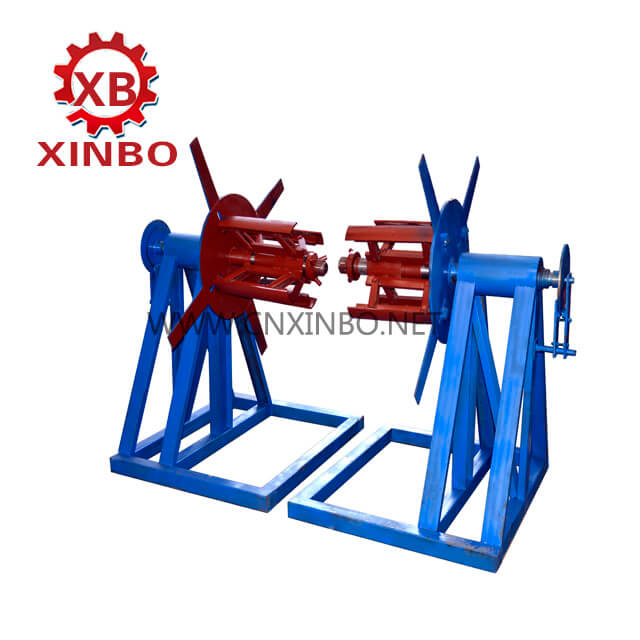

Material supporting frame

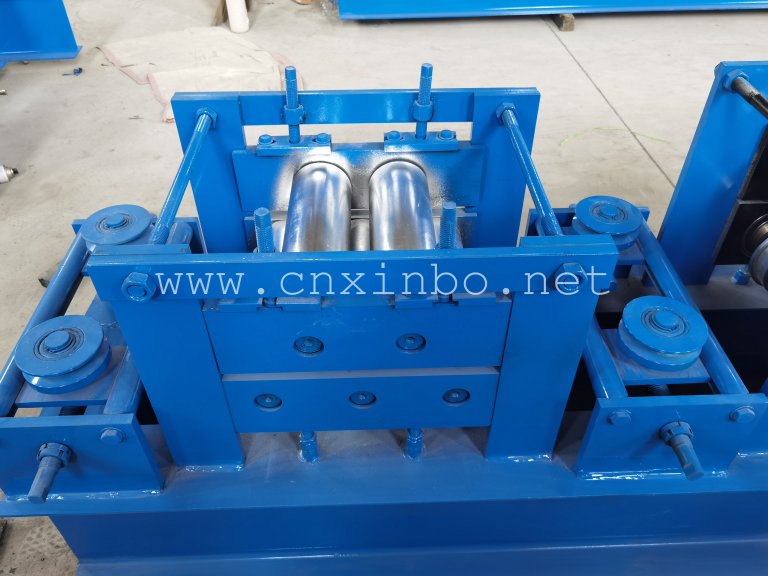

Feeding the material into the platform

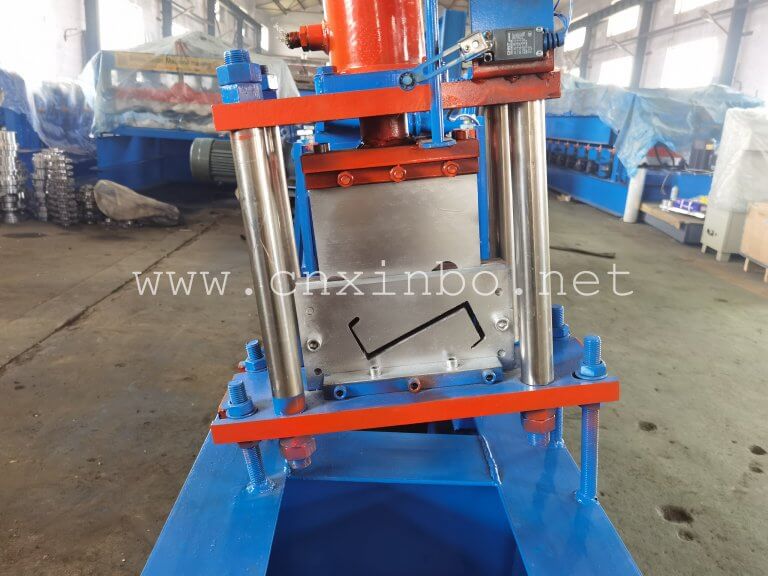

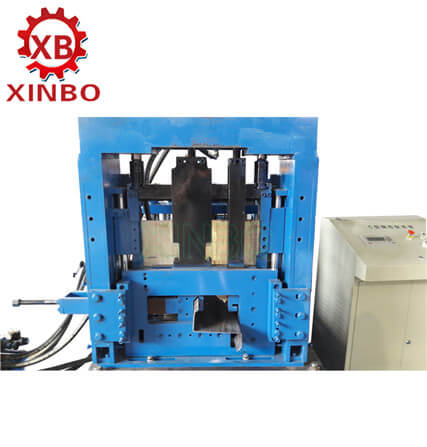

shearing mechanism
It is controlled by the motor and drove by the hydraulic pressure.

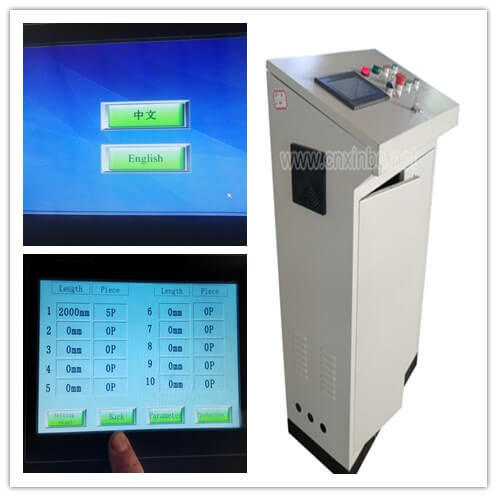

Computer control system
