Suitable to Process | Galvanized steel strip/black steel strip |
Width of raw material | customized |
Rollers | GCr15 |
Dimensions | About 8500*1300*1400mm |
Power | 22+5.5kw |
Thickness of sheet | 1.5–3.0mm as usual; customized |
Material of cutting blade | Cr12 |
Diameter of the roller | customized |
Voltage | 380V, 50Hz, 3 phrases; customized |
weight | About 7.0T |
Productivity | 0—-15m/min |
Control system | Automatically controlled by computer |

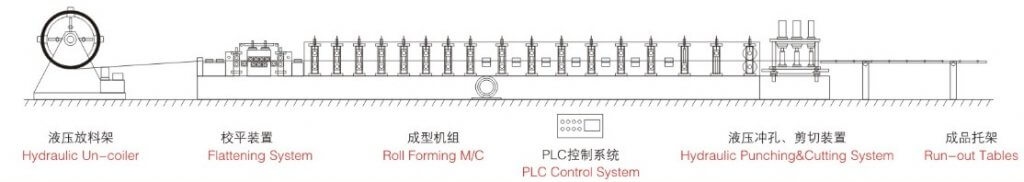

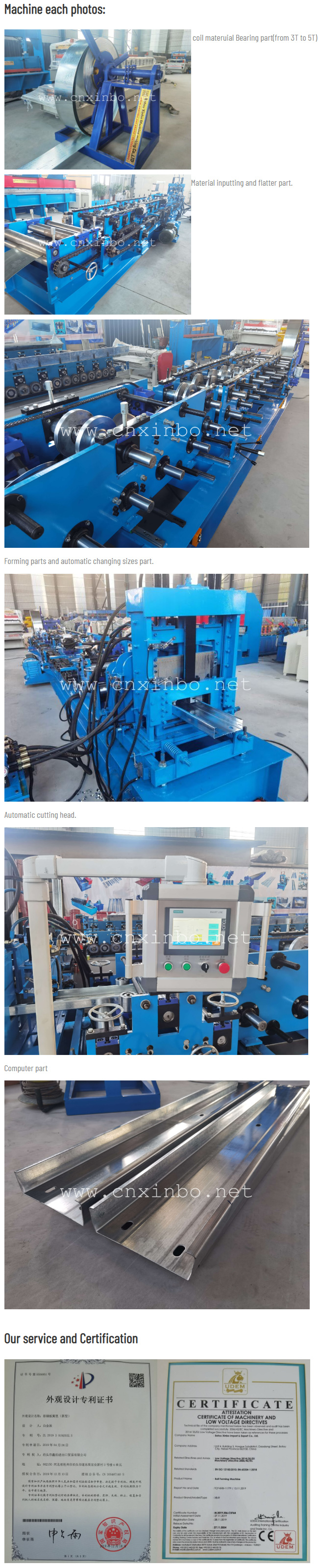

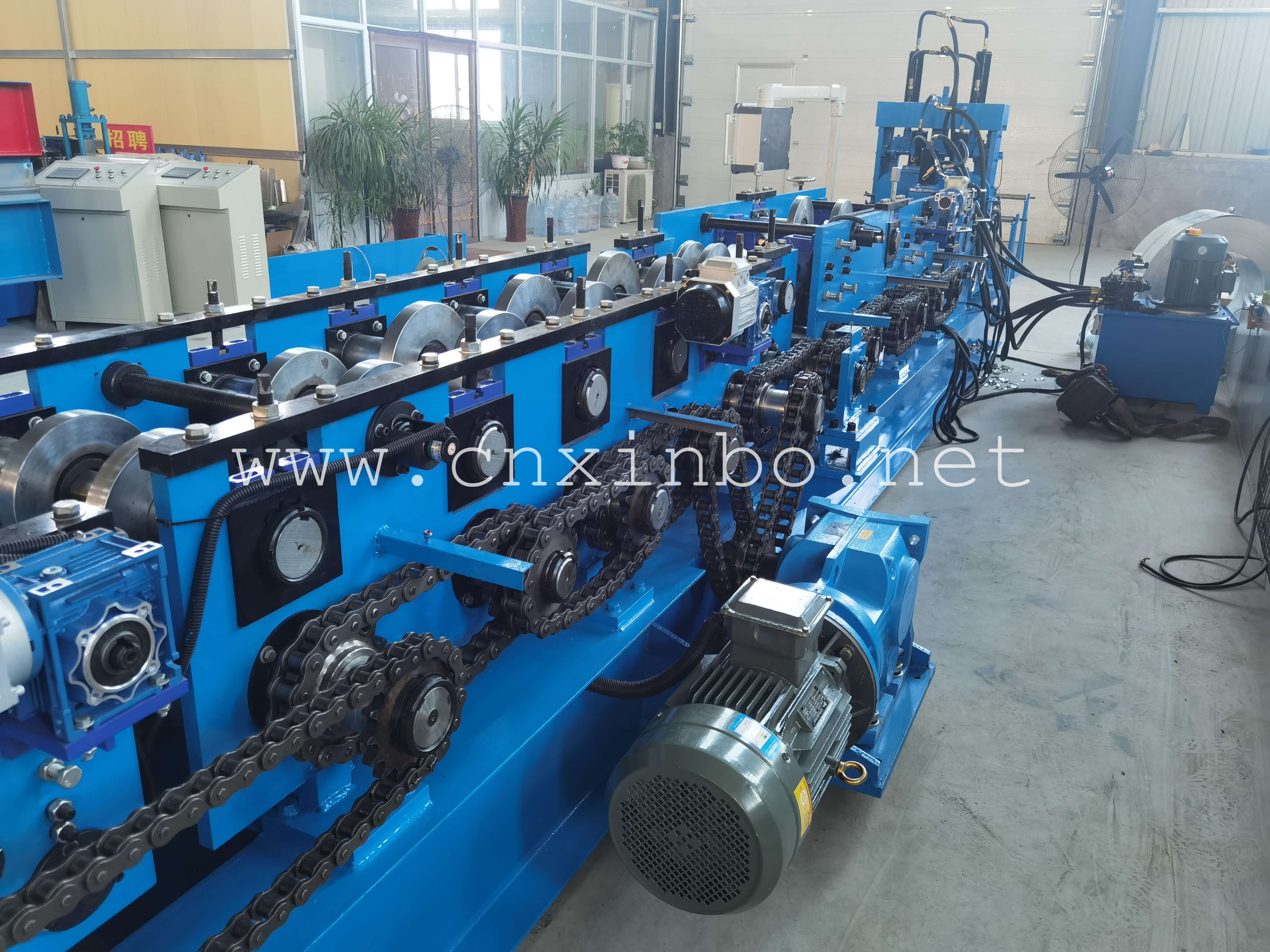

The C/Z purlin machine consists of the guider, leveler, hydraulic hole punch devices, hydraulic cutting device, fast roller exchange forming machine, the electric controlled system and hydraulic system etc.
Equipment parts:
Material supporting frame(one set)
Feeding platform (one)
Steel strip unfolding system (one set)

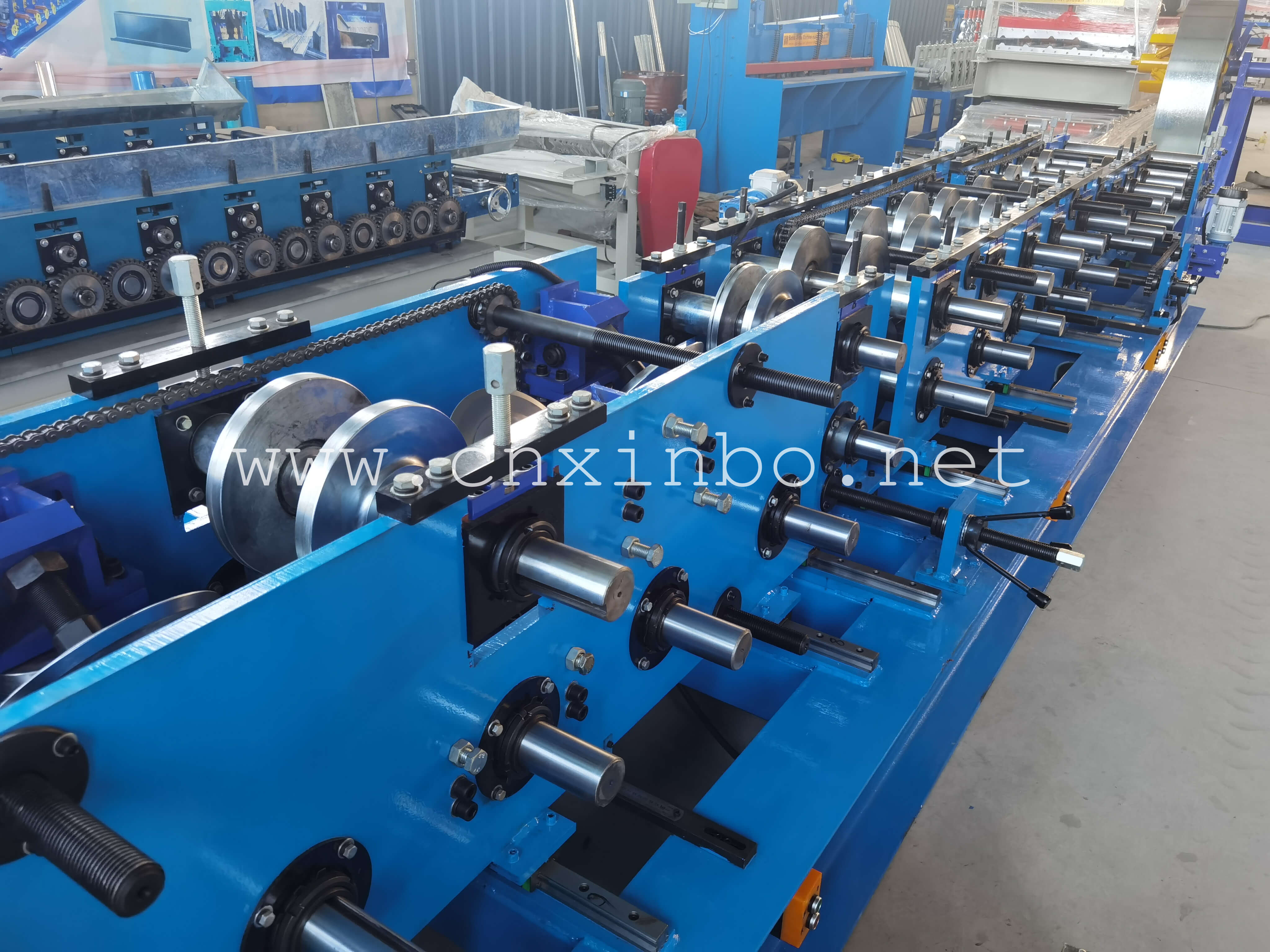

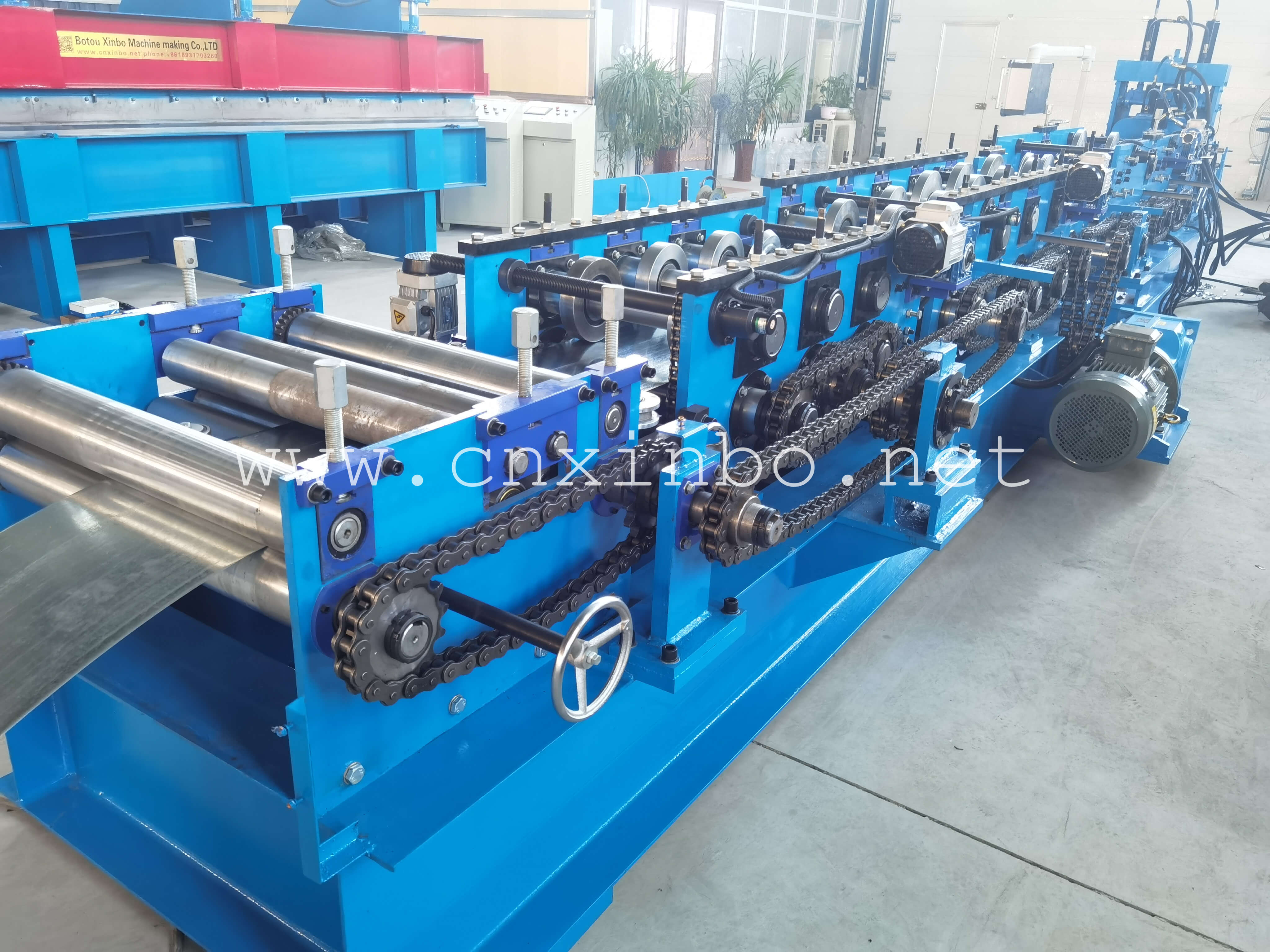

Molding core (one set)
Hydraulicshearing mechanism (one set)

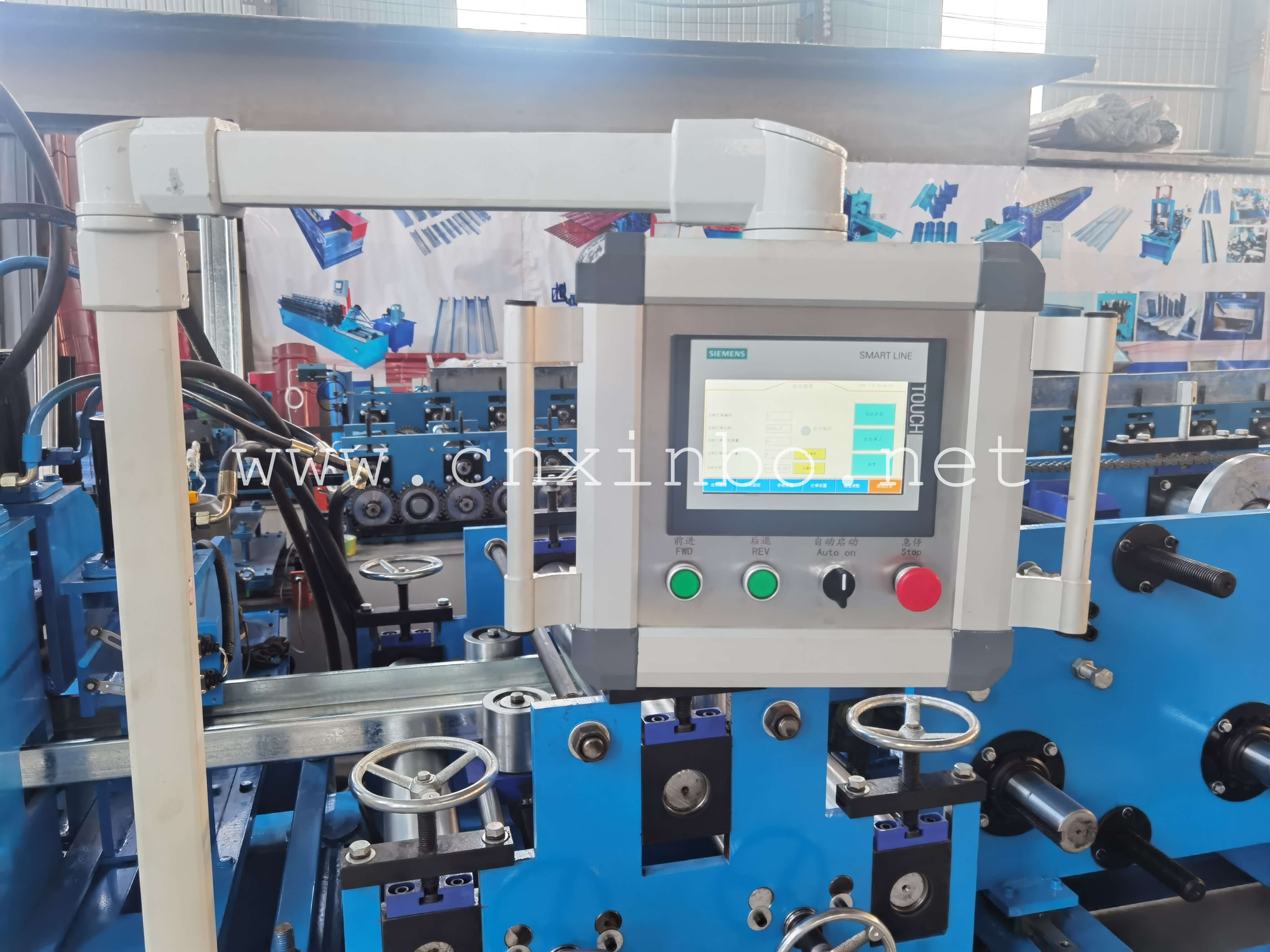

Computer control cabinet (one)
Molded pieces receiving frame
