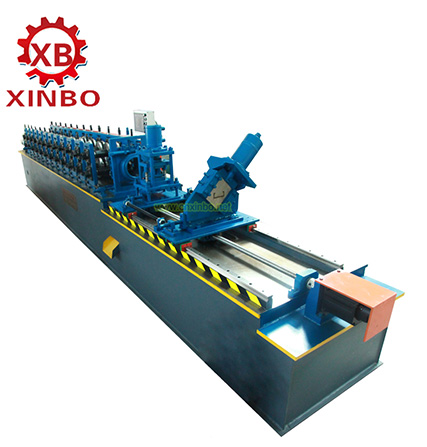

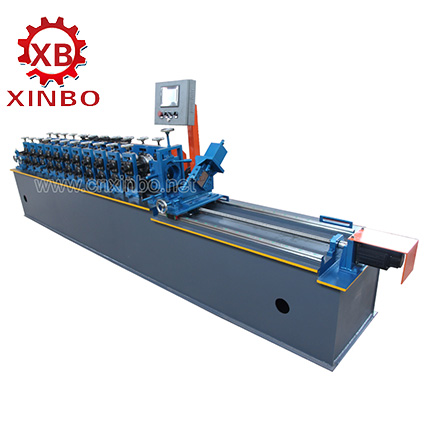

light gauge machine | ||
No. | Item | Specifications |
1 | Coil Width | according to profile |
2 | Diameter of shaft | 50-60mm |
3 | Forming Speed | 0-45m/min |
4 | Middle plate | 18mm |
5 | Material of shaft | 45#steel with tempering |
6 | forming thickness | 0.2mm-0.3mm |
7 | material of rollers | Cr12 |
8 | Cutting type | hydraulic -cutting |
9 | Main power | 7.5kw |
10 | Main frame | 300H steel with upper milling plate |
11 | Control system | PLC |
12 | Brand of electrical parts | Delta |
13 | Manual decoiler | 2 tons |
14 Power 3 Phase,380 Voltage,50Hz or with couster’s requirement | ||

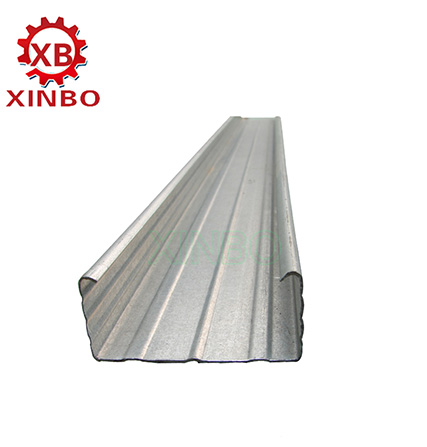

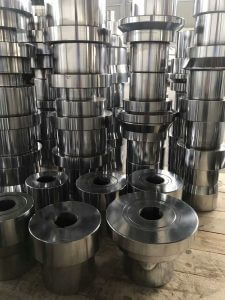

High quality rollers will help to produce the beautiful and high quality profile.
That will satisfy your customers.

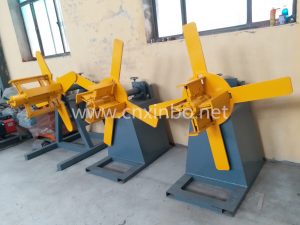

It is used to support the steel coil and uncoil it in a turnable way.
Loading capacity:1-2T
Inner diameter: 450-508mm

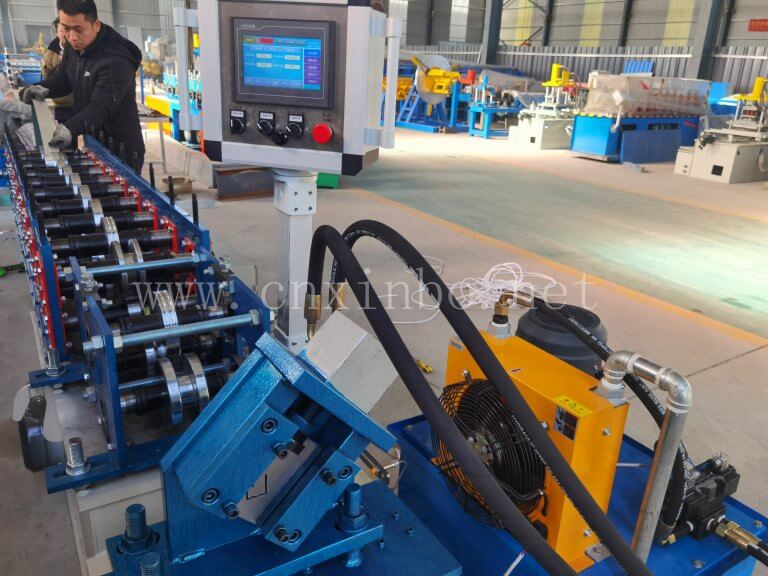

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment

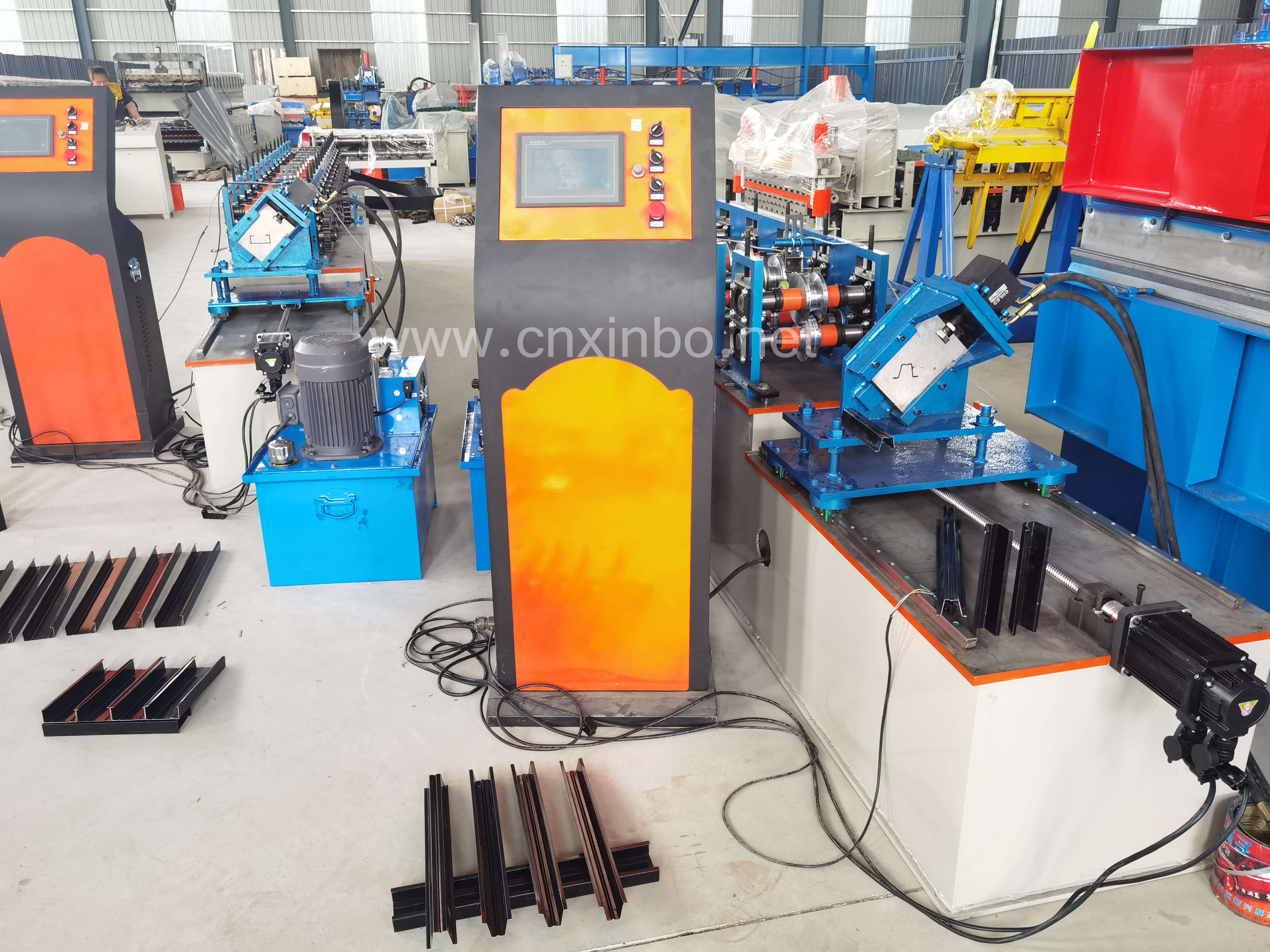

It adopts PLC to control.The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one.
The system is easy to operate and use.
Main machine is nude, the computer control box is packed with wooden frame.

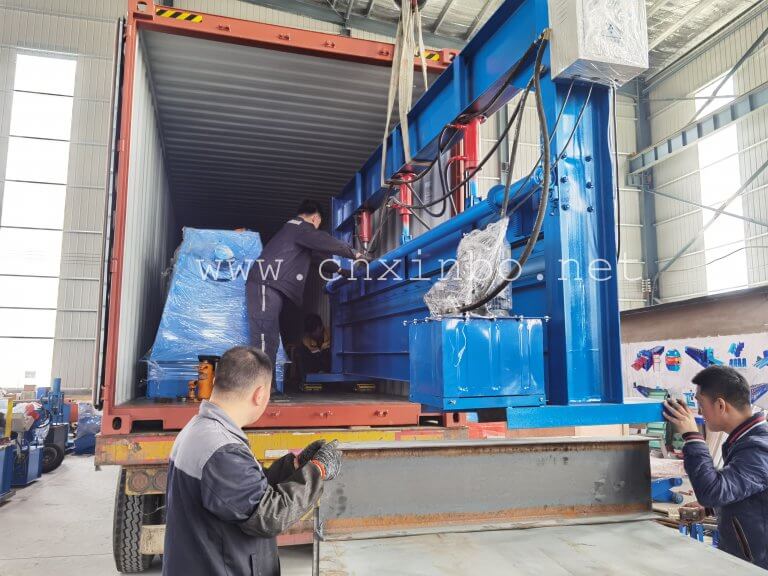

Main machine is nude in the container, the computer control box is packed with wooden packaging.
This light gauge machine producing line is maintained free of charge for 18 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug.
