BOTOU XINBO MACHINE MAKING CO., LTD

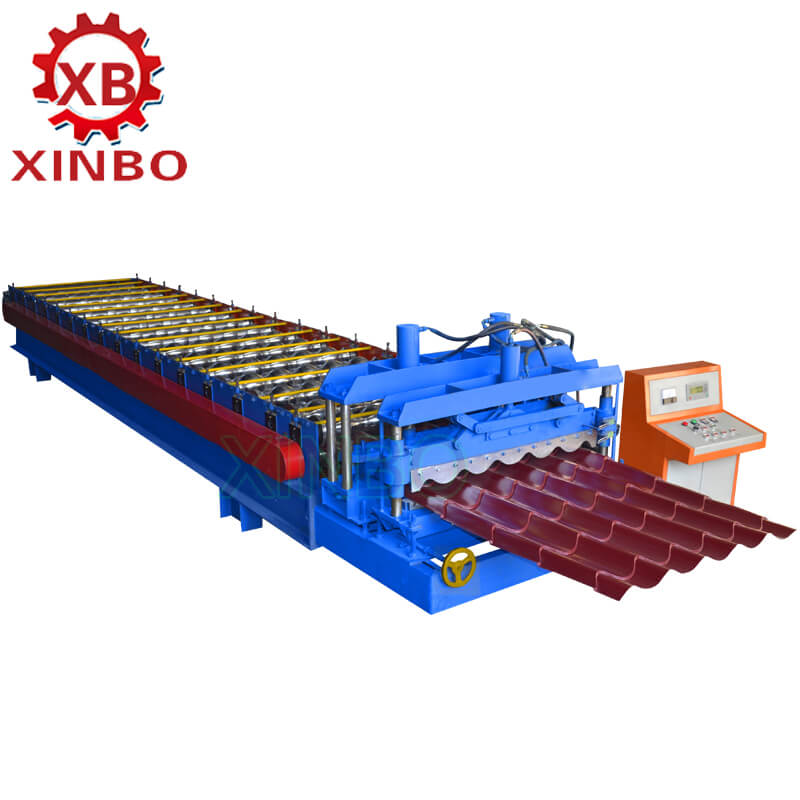

Metal Glazed Tile Exquisite Roof Step Tile Manufacturing Machinery Price

Details

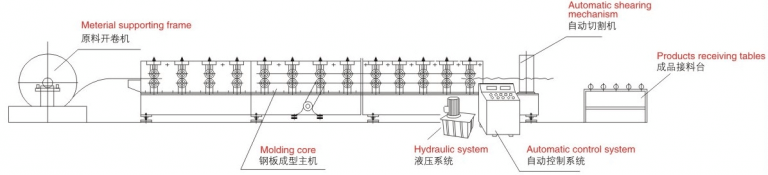

Processing flow chart

Manual Decoiler—Entry Beach—Roll Forming Machine—Automatic Shearing Mechanism—Computer Control Cabinet—Run-out Tables

Processing Material
PPGI,GI,Aluminium
Input Width(mm)
1200
Formed Width(mm)
1000
Processing Thickness(mm)
0.28–0.8
Material of Rollers
45# steel,with heat treatment
Diameter of Shaft
Ф70mm
Production Speed
12—15m/min
Roller Driven
Decelerating Motor+Chain Transmission
Cutting Model
Hydraulic Profile Cutting
Length Measurement
Encoder
control method
PLC control system(imported Brand)
Operation Model
Button + Touch Screen
Total Power
4+4kw
Voltage
380V 50HZ or at buyer’s request

Advantages of Xinbo Metal Glazed Tile Machine:

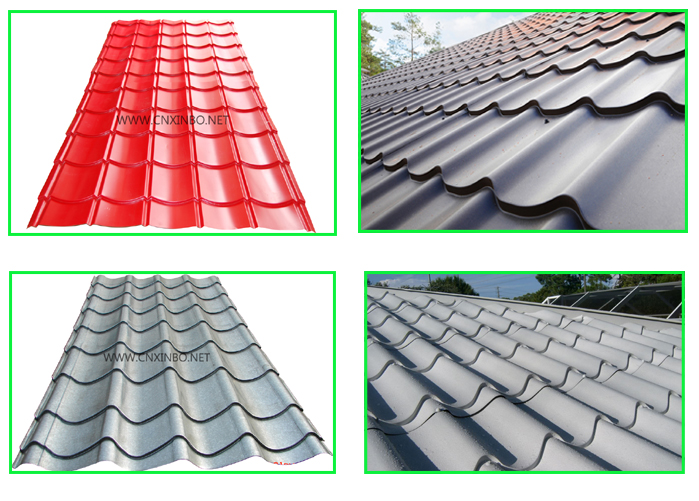

1: The glazed tiles produced are durable, beautiful in appearance, waterproof and corrosion-resistant.
2: The production operation is simple, the whole process of automatic production is controlled by the PLC computer system, which greatly reduces the labor cost and can realize rapid realization.

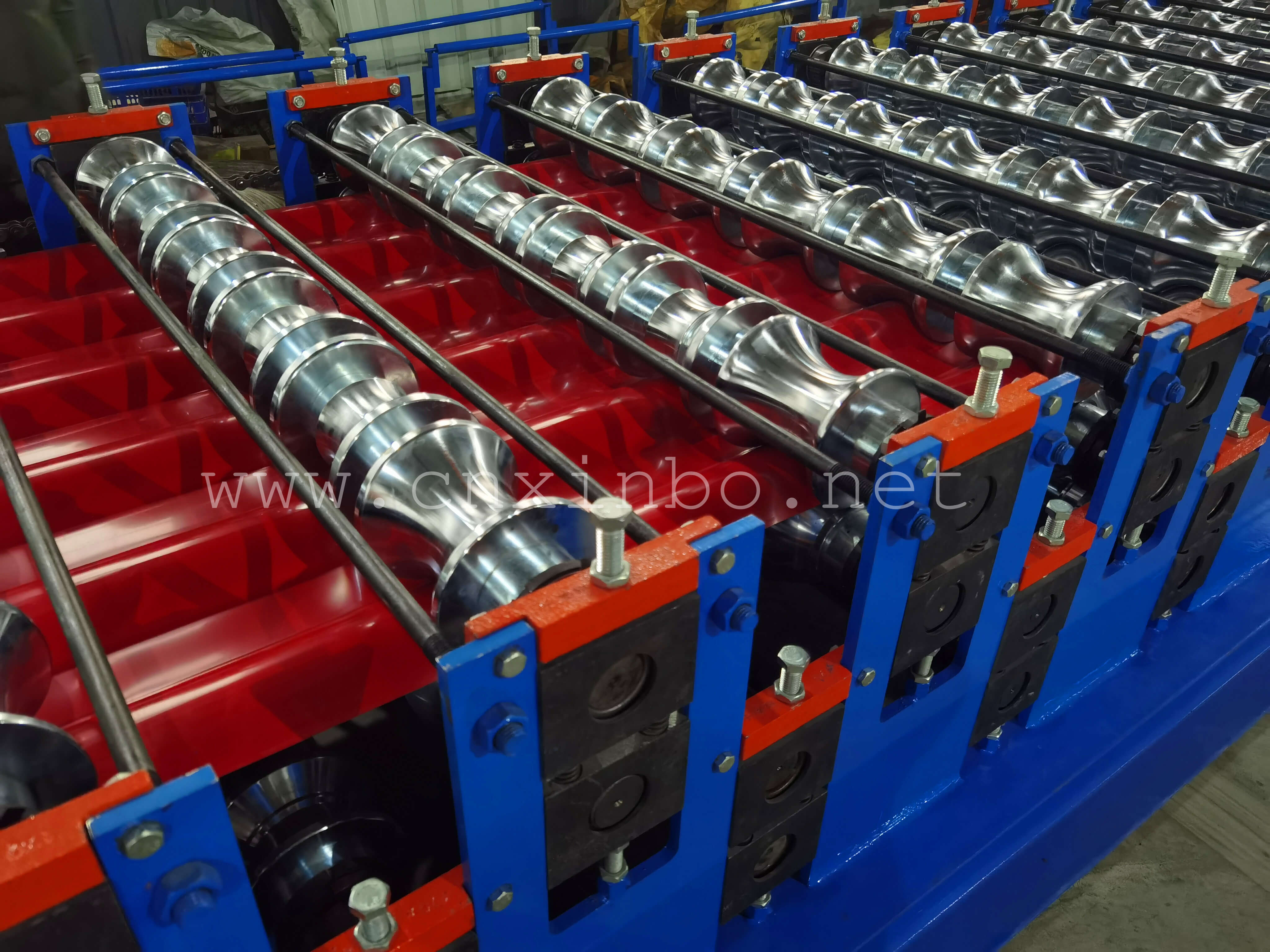

3: The selected roller assembly is steel plated with hard chrome, which is durable and helpful for long-term use and maintenance.
4: The PLC computer control system is all precision electronic components, which can ensure the precise operation of the machine.
5: Xinbo has more than 10 years of experience in the field of metal forming machines, ensuring that customers can buy the highest quality product machines with the least money. In addition, customized services can also be provided according to the required drawings.
