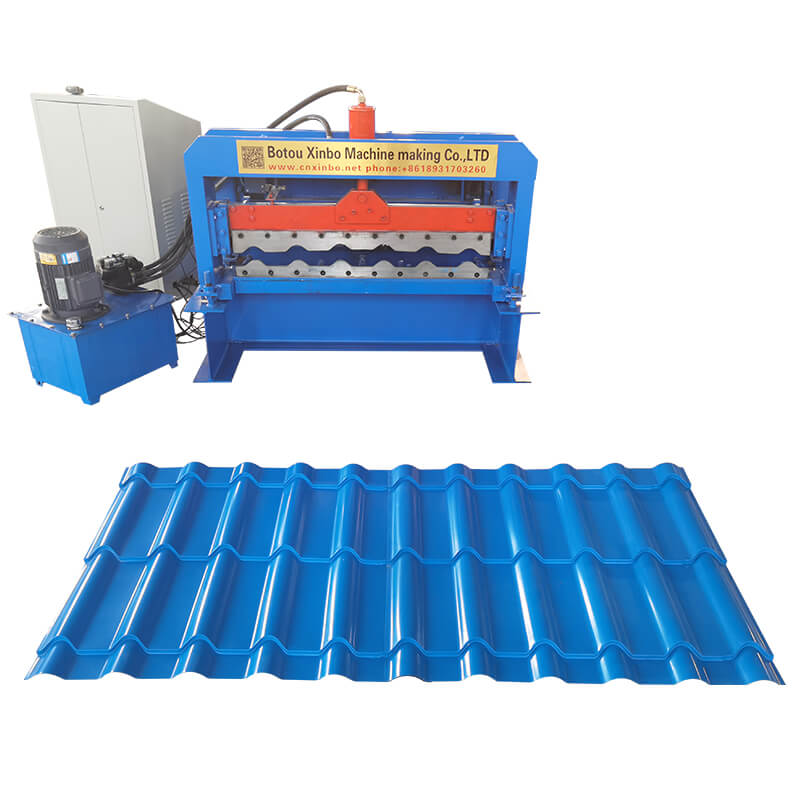

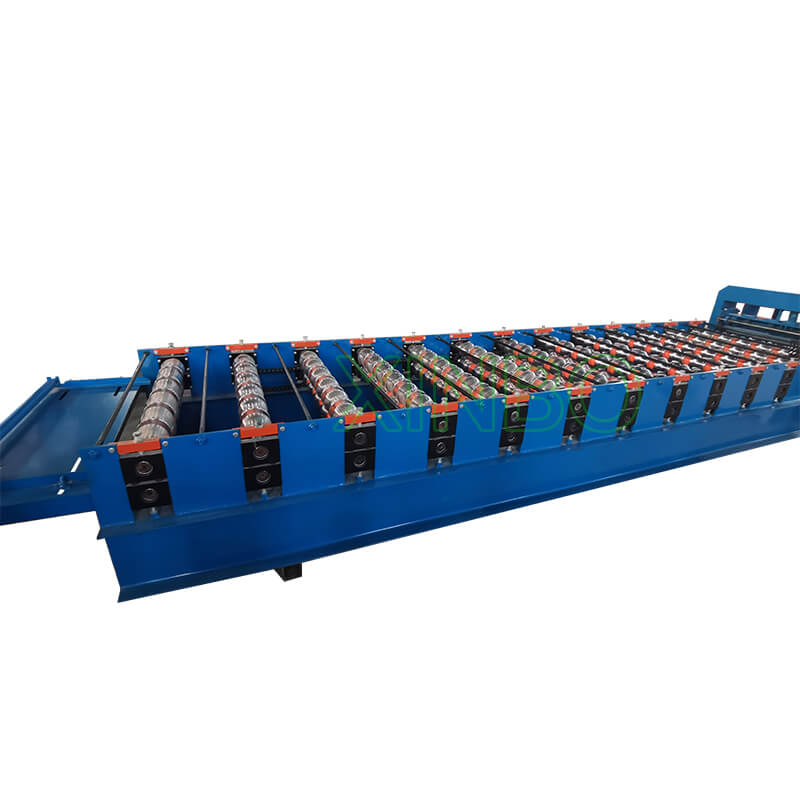

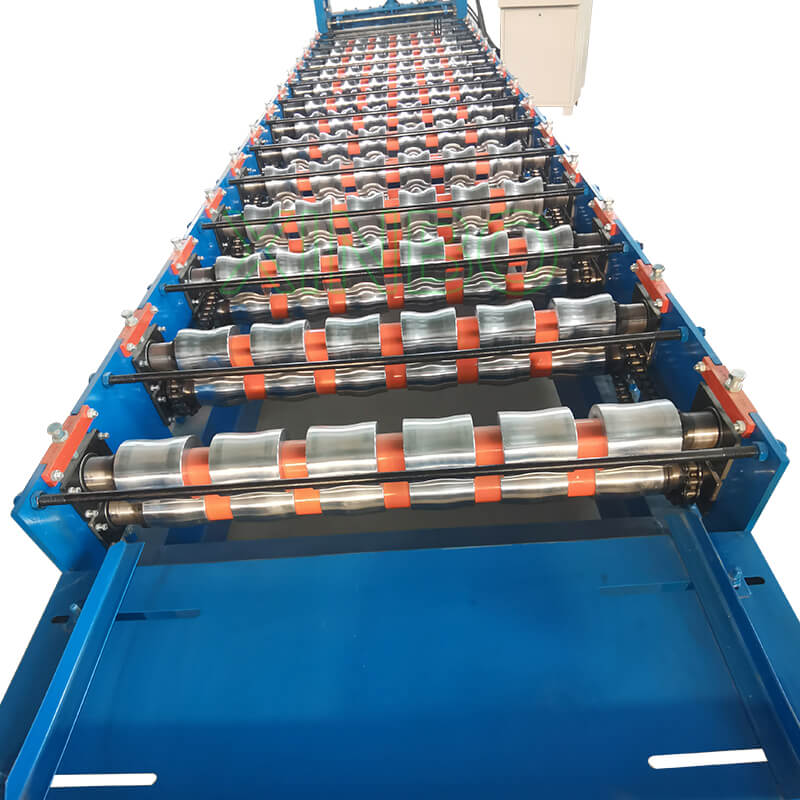

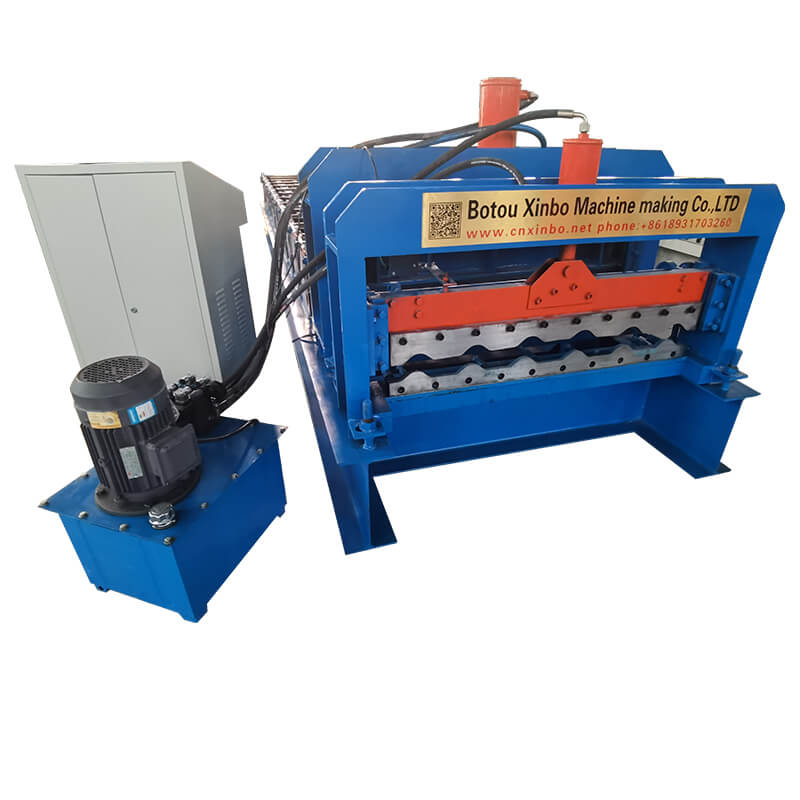

Glazed Tile Roof Roll Forming Machine

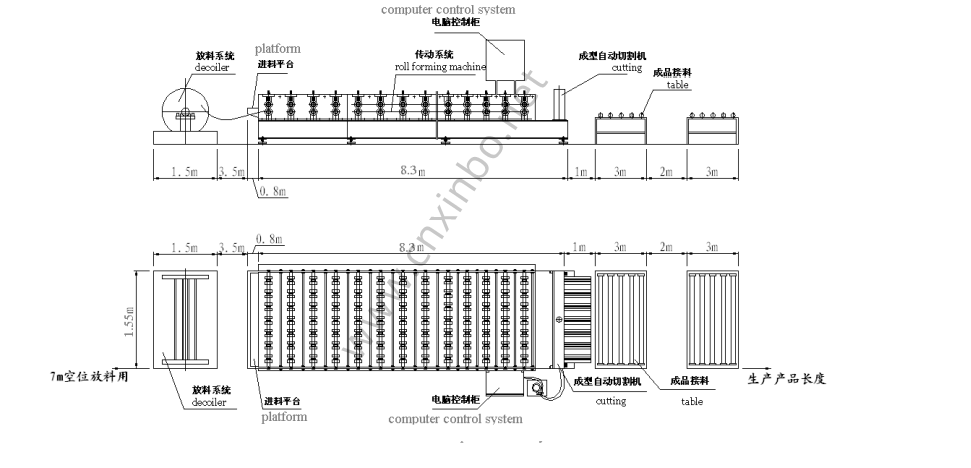

Working flow

Manual Decoiler—Entry Beach—Roll Forming Machine—Automatic Shearing Mechanism—Computer Control Cabinet—Run-out Tables

Item	Specification
Processing Material	PPGI,GI,Aluminium
Material of Rollers	45# steel,with heat treatment
Diameter of Shaft	Ф70mm
Roller Driven	Decelerating Motor+Chain Transmission
Cutting Model	Hydraulic Profile Cutting
Length Measurement	Encoder
control method	PLC control system(imported Brand)
Total Power	6kw
Voltage	380V 50HZ or at buyer’s request
