Suitable to Process | Color steel sheet ; Galvanized sheet ; Iron sheet; Aluminum sheet |
Width of raw material | 914/1000/1200/1220/1250mm as usual;customized |
Rollers | customized |
Dimensions | About 7000*1550*1200mm |
Power | 5.5+4kw |
Thickness of sheet | 0.3-0.8mm as usual; customized |
Material of cutting blade | Cr12 |
Diameter of the roller | customized |
Voltage | 380V, 50Hz, 3 phrases;customized |
weight | About 5T |
Productivity | 2—-5m/min |
Control system | Automatically controlled by computer |

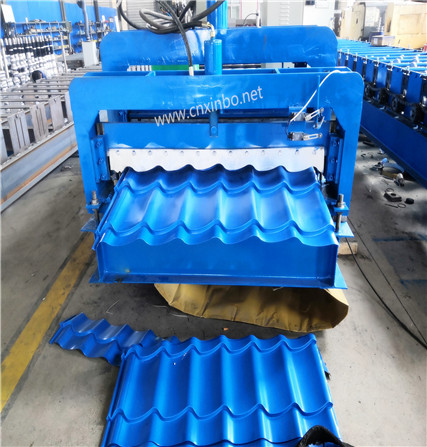

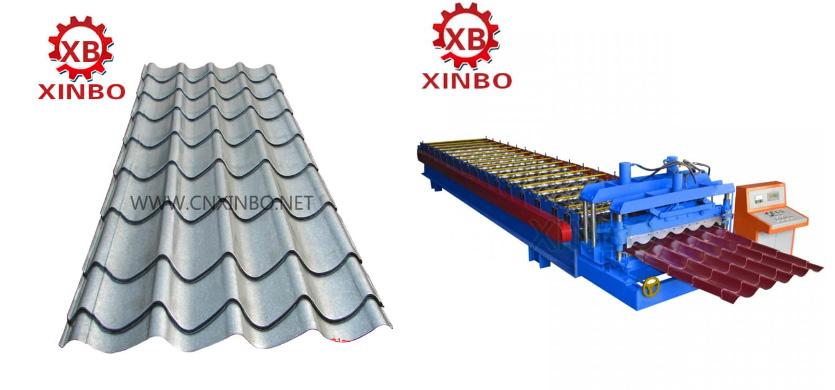

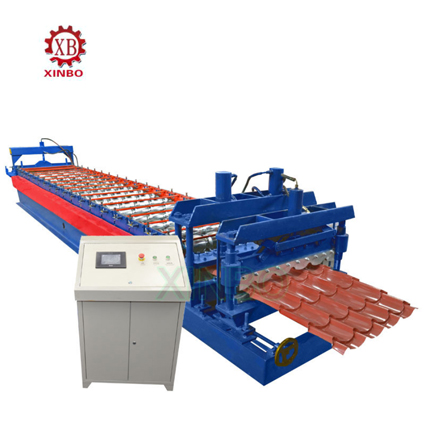

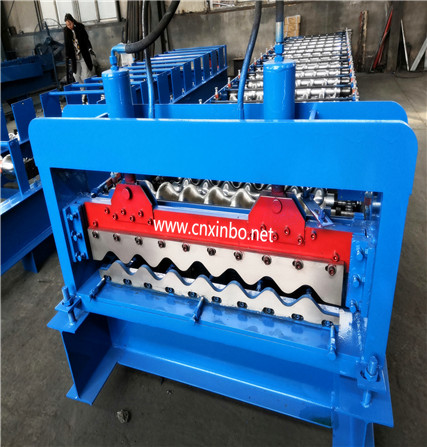

Tile Roll Forming Machine Material:

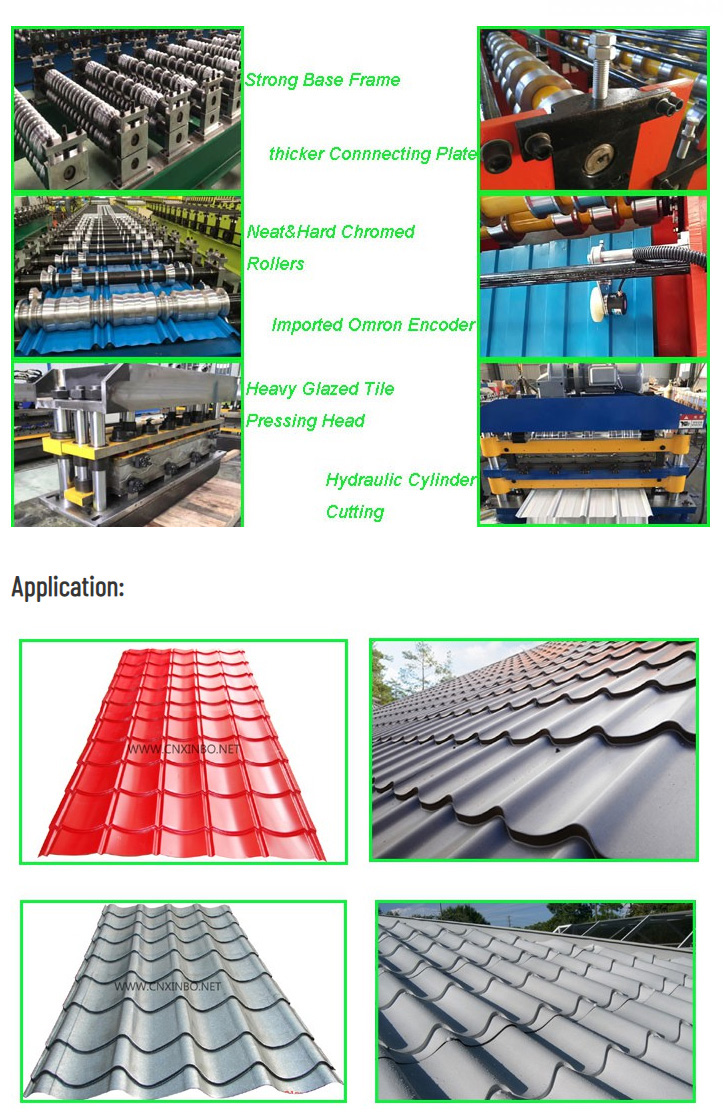

1. Electric elements: Imported PLC & transducer.

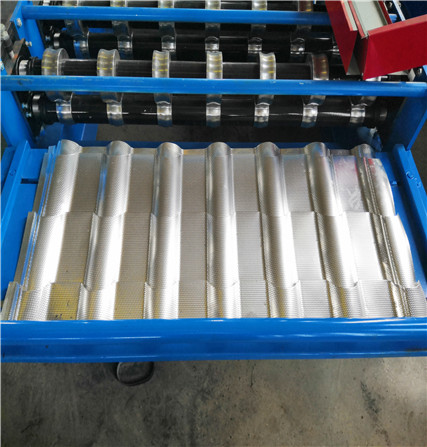

2. Anti-rust roller: High grade No. 45 forged steel. Plated with 0.05mm hard chrome
3. Well resisting active shaft: High grade No. 45 carbon wrought steel.
4. Cutter blade: Cr12 mould steel with quenched treatment
5. Precision: shafts are tooled by grinding machine at least twice. Rollers are CNC processed.
This producing line is maintained free of charge for 18 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to help install and teach workers operation in customer factory.
