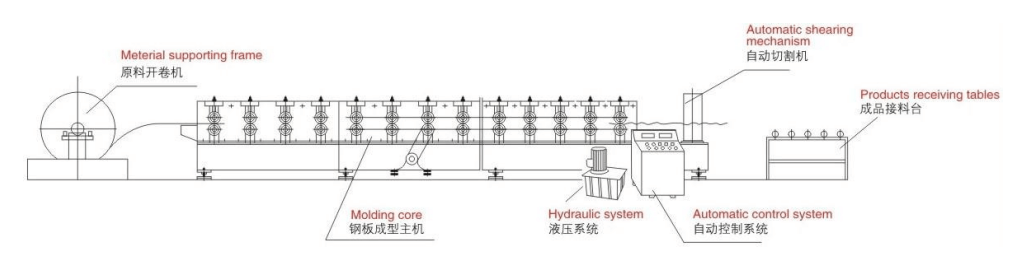

Manual Decoiler—Entry Beach—Roll Forming Machine—Automatic Shearing Mechanism—Computer Control Cabinet—Electrical Run-out Tables
No. | Item | |
1. | Processing Material | PPGI,GI,AL |
2. | Input Width(mm) | 608mm or as customer needing |
3. | Formed Width(mm) | As customer need |
4. | Processing Thickness(mm) | 0.3—0.7 |
5. | Material of Rollers | 45# steel,with hard chrome coated |
6. | Diameter of Shaft | Ф70mm |
7. | Production Speed | 0—15m/min |
8. | Roller | As design |

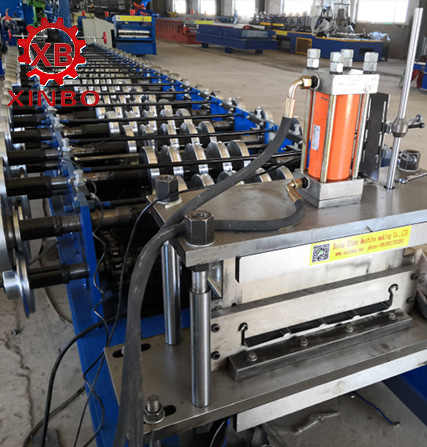

9. | Cutting Model | Hydraulic Profile Cutting |
10. | Length Measurement | Encoder |
11. | Control Style | PLC control |
12. | Total Power | 6kw |
13. | Voltage | 380V 50HZ or at buyer’s request |
Packing method:Bare covered, with waterproof cloth andstow-wood.
Imported computer control system packed with waterproof cloth and card board.
Salesterm:30% deposit by T/T before production, and rest 70% should be balanced by T/T before loading into container .
After-salesservice:This producing line is maintained free of charge for 18 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug. Buyers should take all the fees for technicians traveling abroad.
Delivery time: 35 working days.
BOTOU XINBO MACHINE MAKING CO
