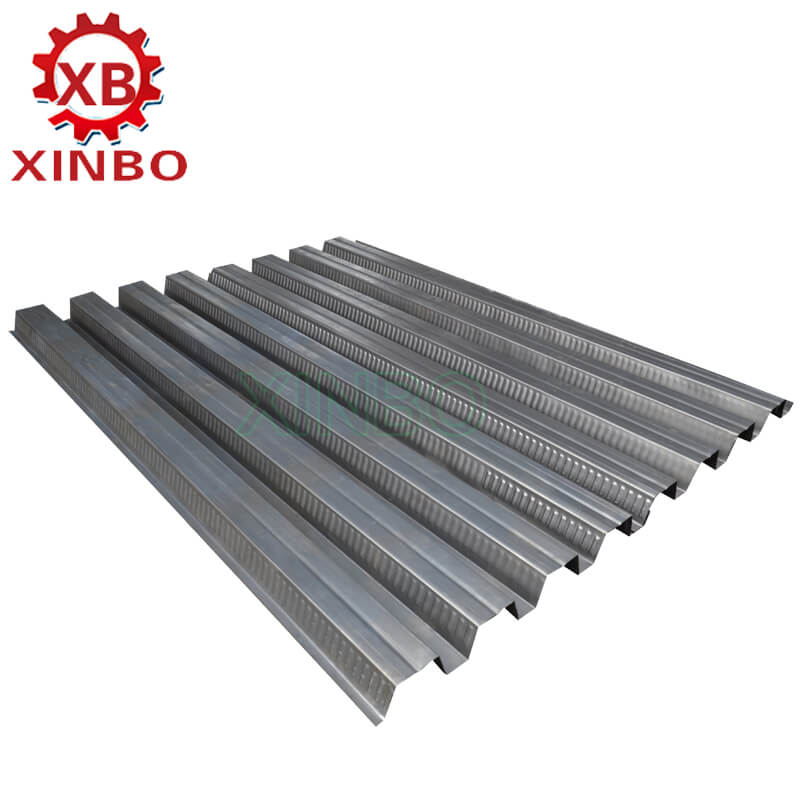

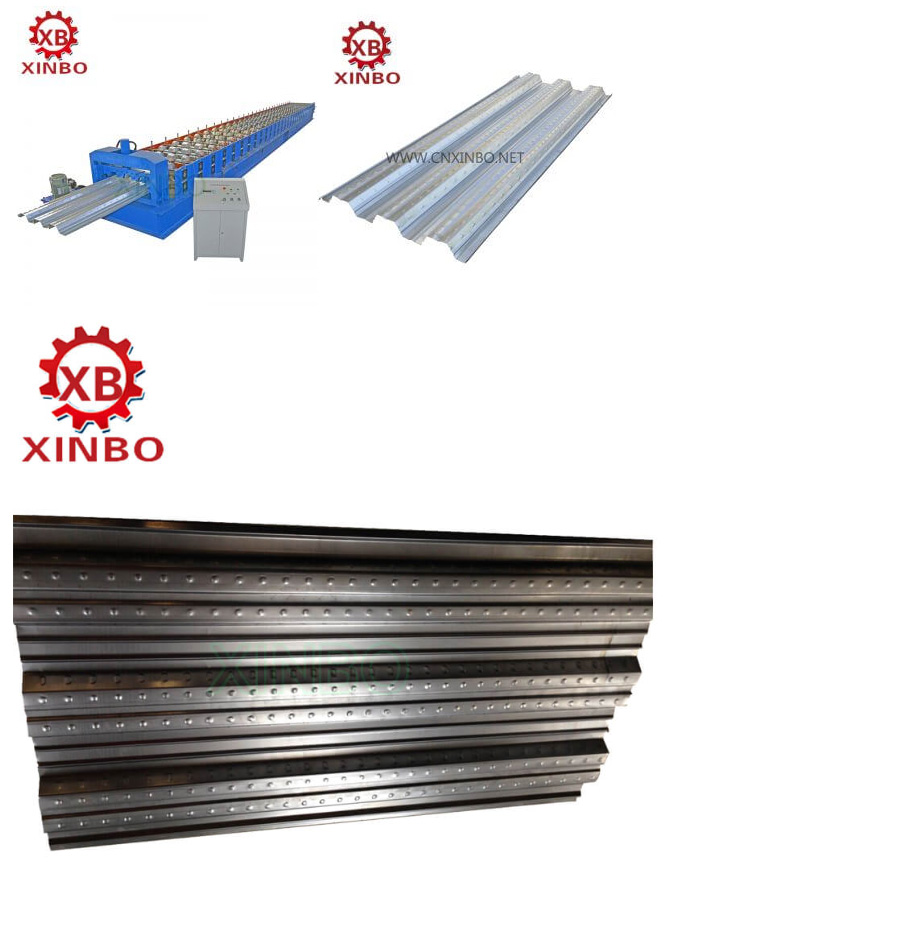

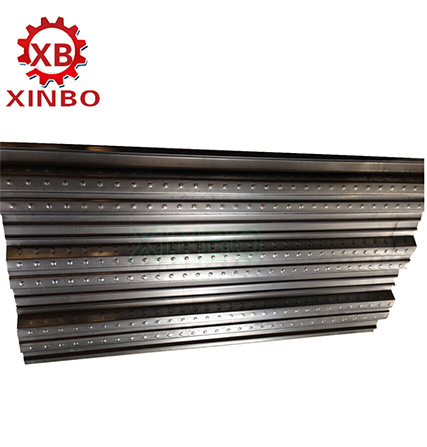

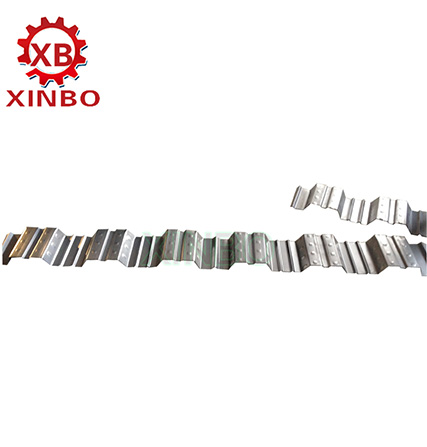

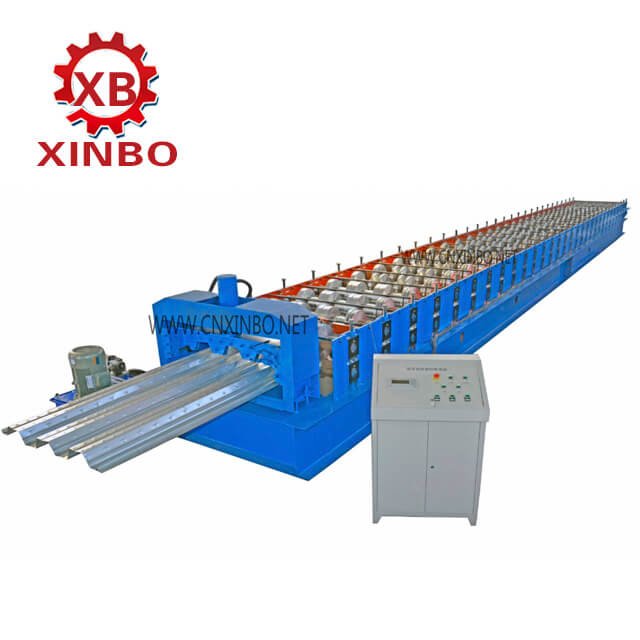

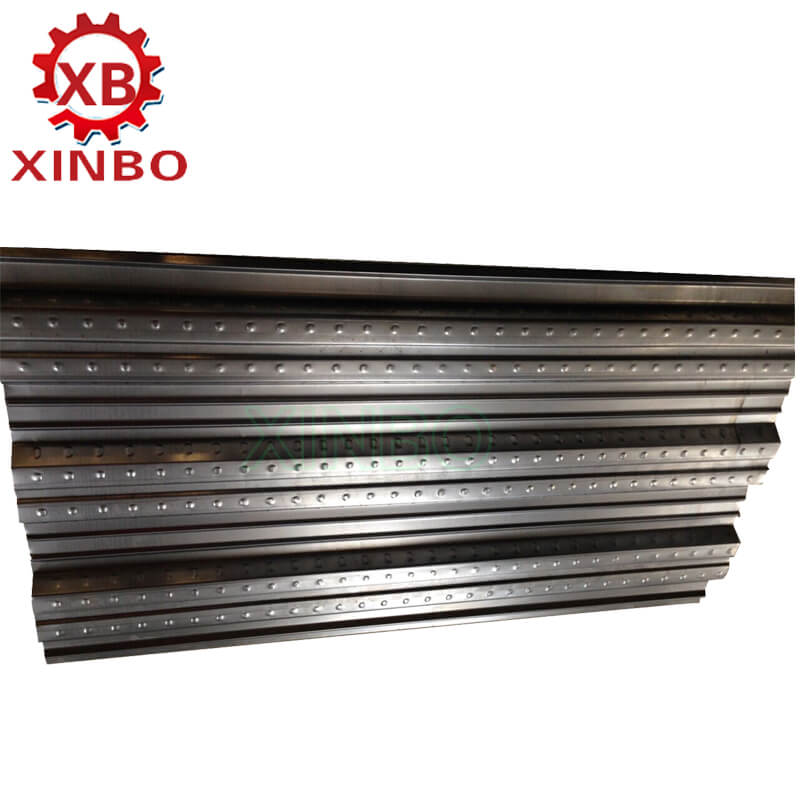

decking floor roll forming machine

Details

Technical parameter


Items

Specifications

Material of coil

Material Width

1000-1250mm

Material Thickness

0.5-1.5mm

Uncoiler

5 tons manual

Forming system

Rolling Speed

6-15m/min

Roller Stations

22-28stations

Roller Material

45# steel

Material of shaft

45 steel

Shaft DIA

D90mm

Maim Motor Power

15kw

Hydraulic cutting Power

7.5kw

Cutting system

Material Of Cutting

CR12Mov

Tolerance

+-1.5mm

Electrical control system

Electric Source

380V, 50HZ,3 phase or as custer’s requirement

Control System

PLC

Way Of Drive

chain

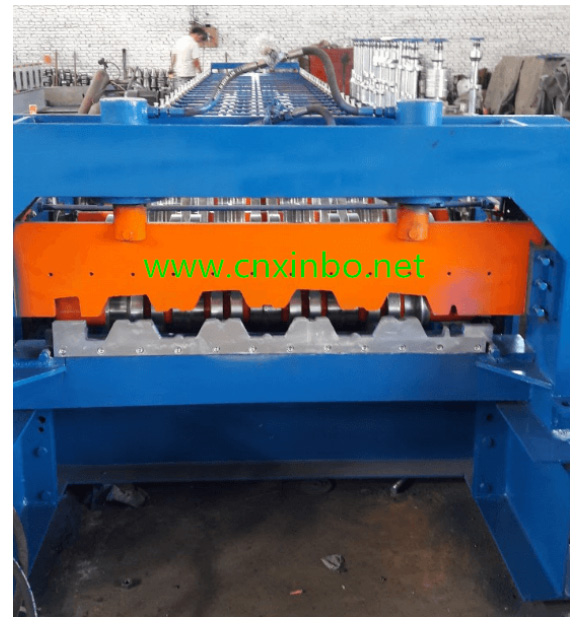

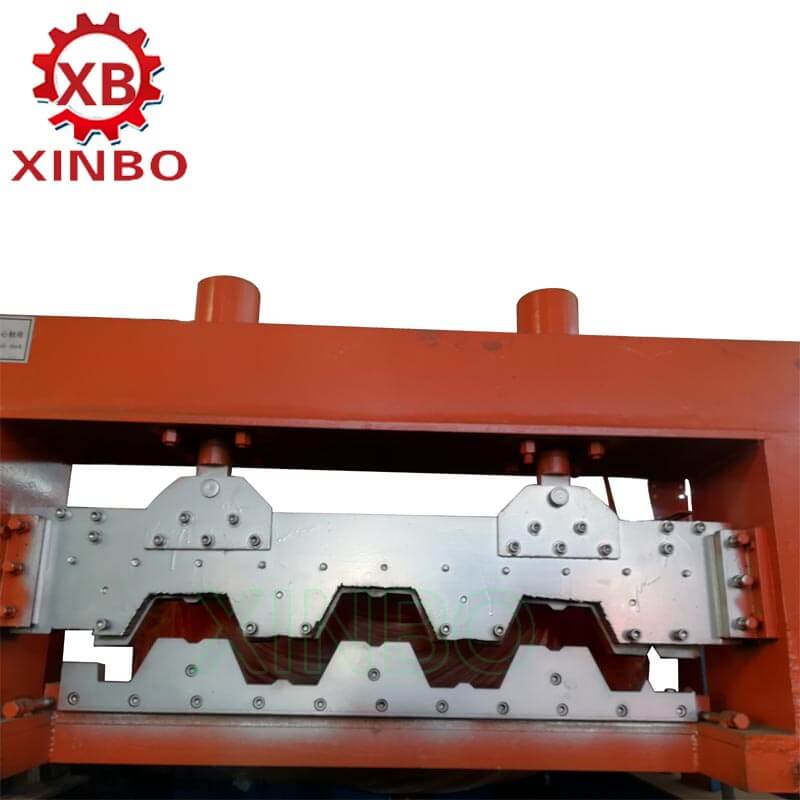

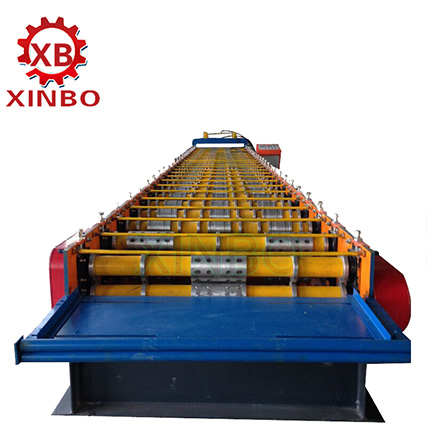

Rollers

In order to get high quality product, our machine adopts welded steel frame structure, AC frequency conversion motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and chrome coating.

Roller chrome coated thickness: 0.05 mm.

Computer Control Cabinet

It adopts PLC to control. The target piece`s length is adjustable and digit of it can be adjusted. Computed mode has two modes:

automatic and manual one.

The system is easy to operate and use.

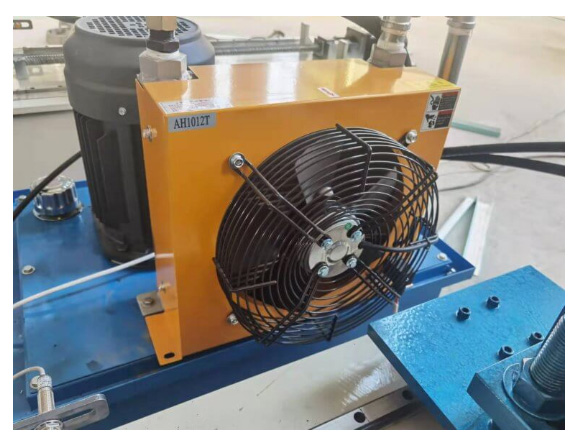

Hydraulic Station

It is derived by a Gear Pump. After filling the hydraulic oil into the hydraulic oil tank, the pump could drive the hydraulic cylinder to realize the cutting function.The system includes a set of hydraulic tank, a set of a Gear Pump, two hydraulic pipes .and two sets of Solenoid Valves.

Power of The Pump:4kw

Hydraulic oil :40#


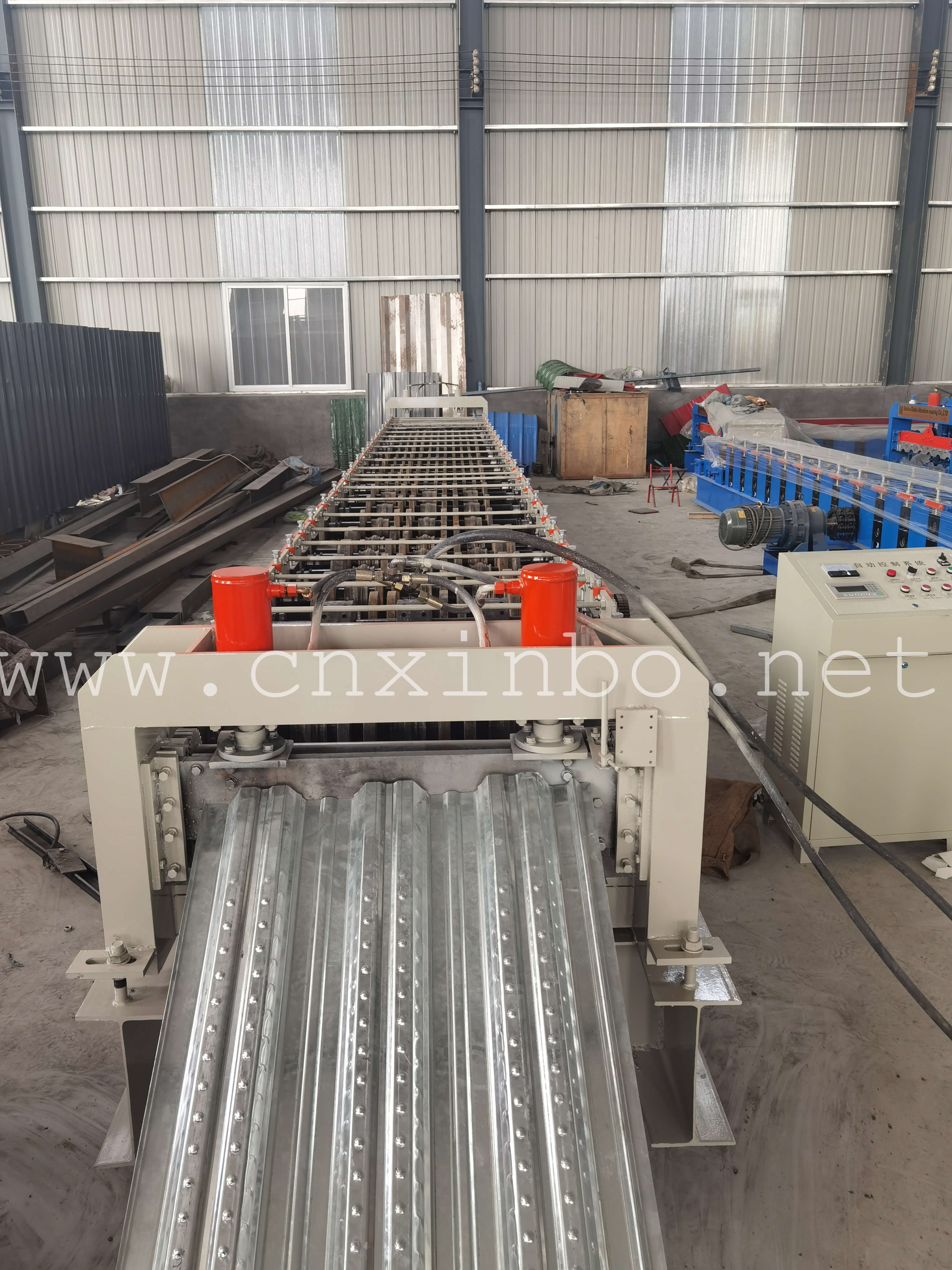

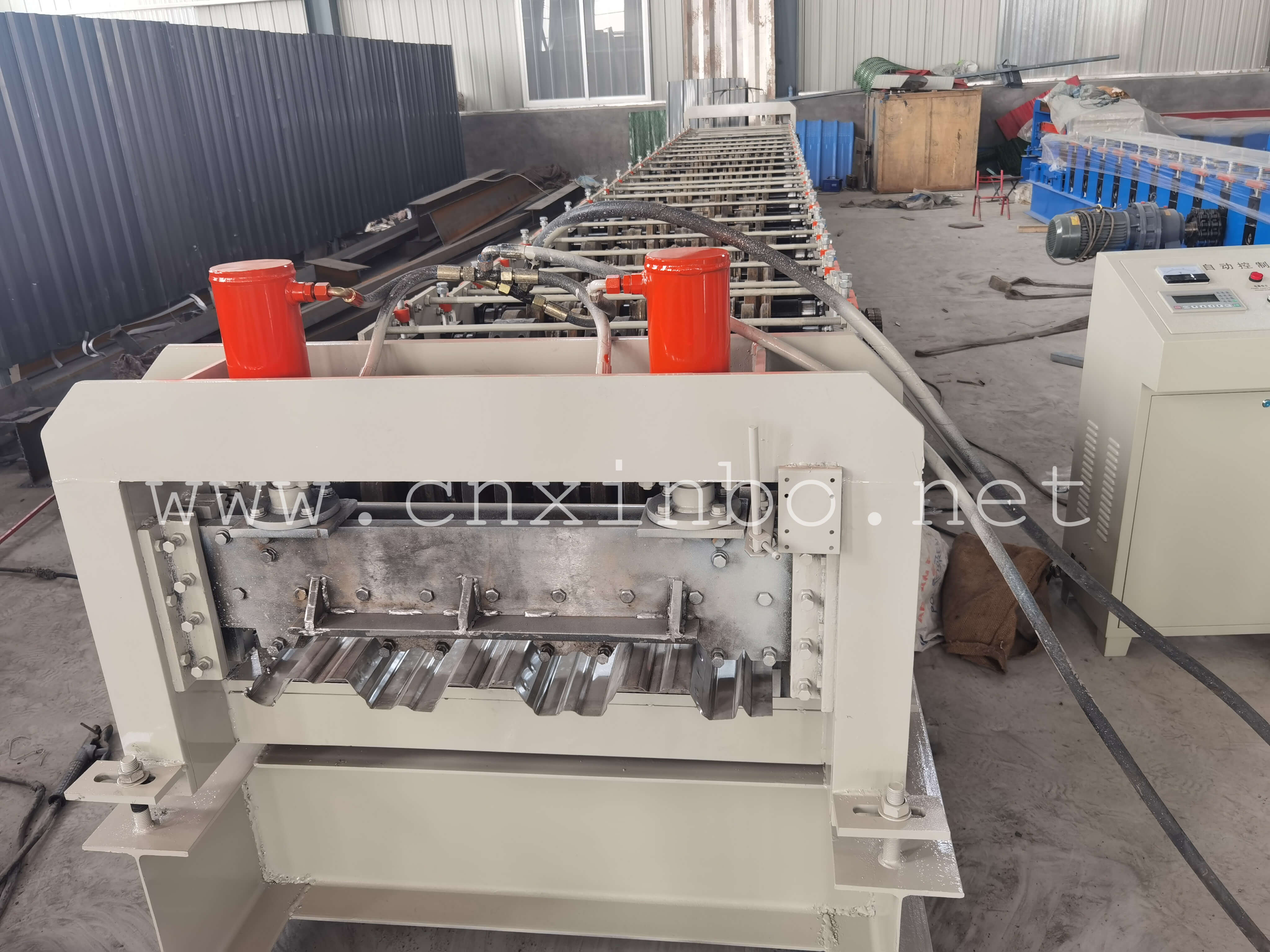

Shearing Mechanism

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.

Material of blades: Cr12

Components:It contains one set of cutting tools, one hydraulic tank and one cutter machine.


Entry Beach

Put the raw material(steel plate) through the beach to manufacture and process, it can guarantee that the products are neat, parallel and everything is uniformity. Please refer to the equipment regulation to know the function of locate angle iron.

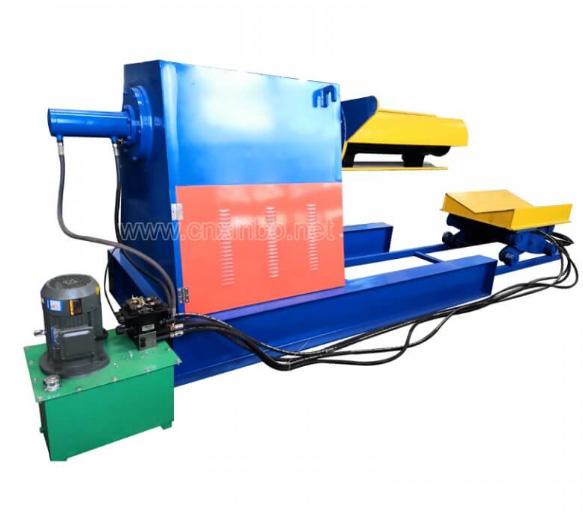

It is used to support the steel coil and uncoil it in a turnable way. (You can choose manual decoiler or automatic decoiler.)

Loading capacity:5T

Inner diameter: 450-508mm

2023-07-13_092345_08.jpg\

Our service:

This producing line is maintained free of charge for 18 months. When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug.
