BOTOU XINBO MACHINE MAKING CO., LTD

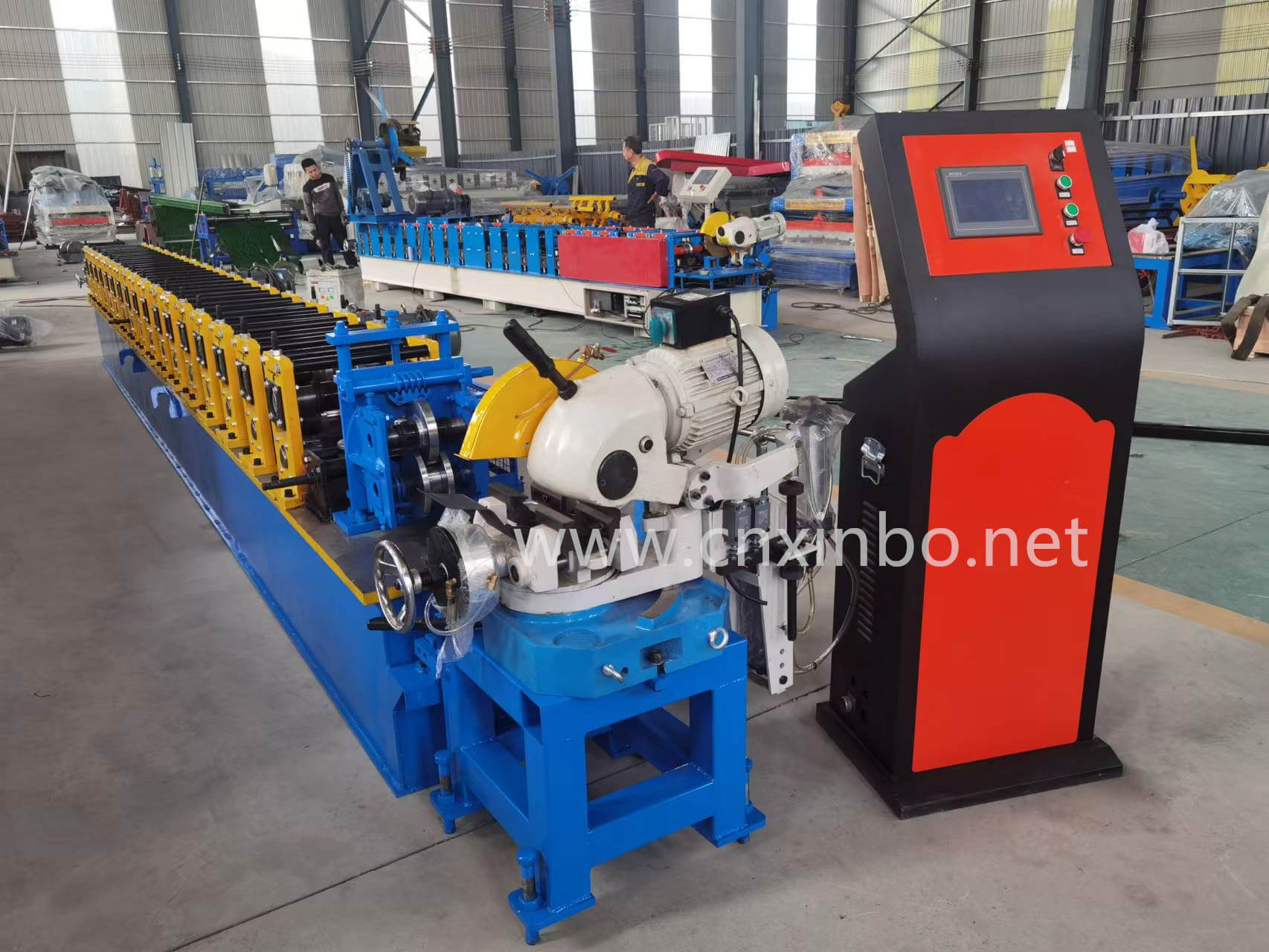

Cable Bridge Panel Machine

Details

Main Technical Parameter:

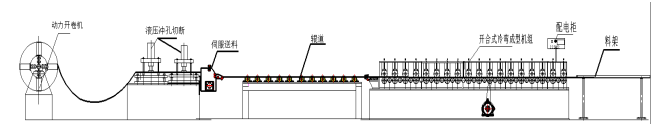

Equipment makeup and main parameters of single unit:

  1. Decoiler:

Material: Steel plate

Equipment operation

Automatically

Voltage

AC380/50Hz or as your requirment

Thickness of sheet(mm)

As drawing request

Formed width(mm)

   As detail drawing

Productivity

0-15m/min


Equipment makeup and main parameters of single unit:

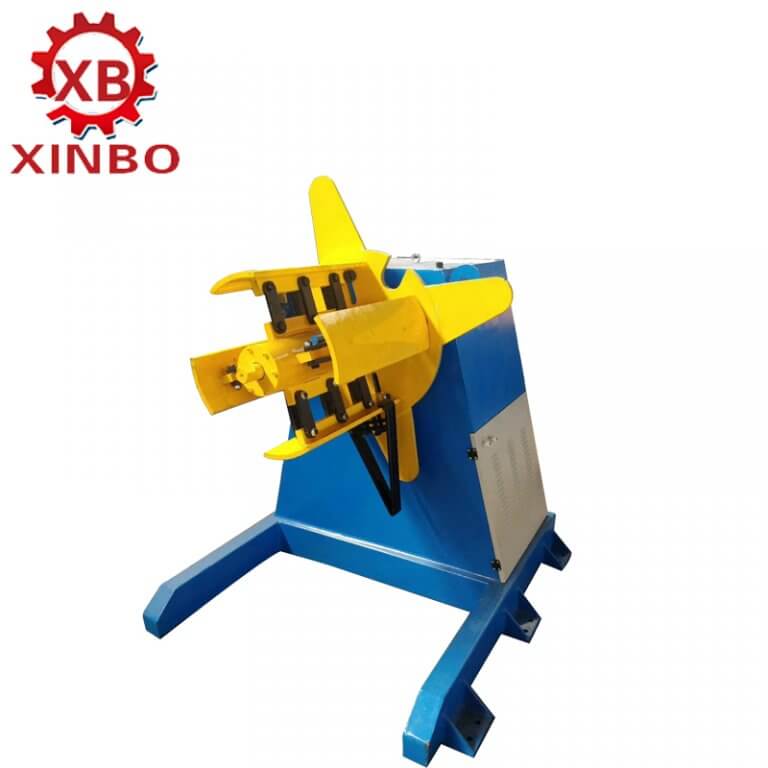

  1. Decoiler:

3T-hydraulic-decoiler-拷贝-768x768.jpg  3T-hydraulic-decoiler-拷贝-768x768.jpg

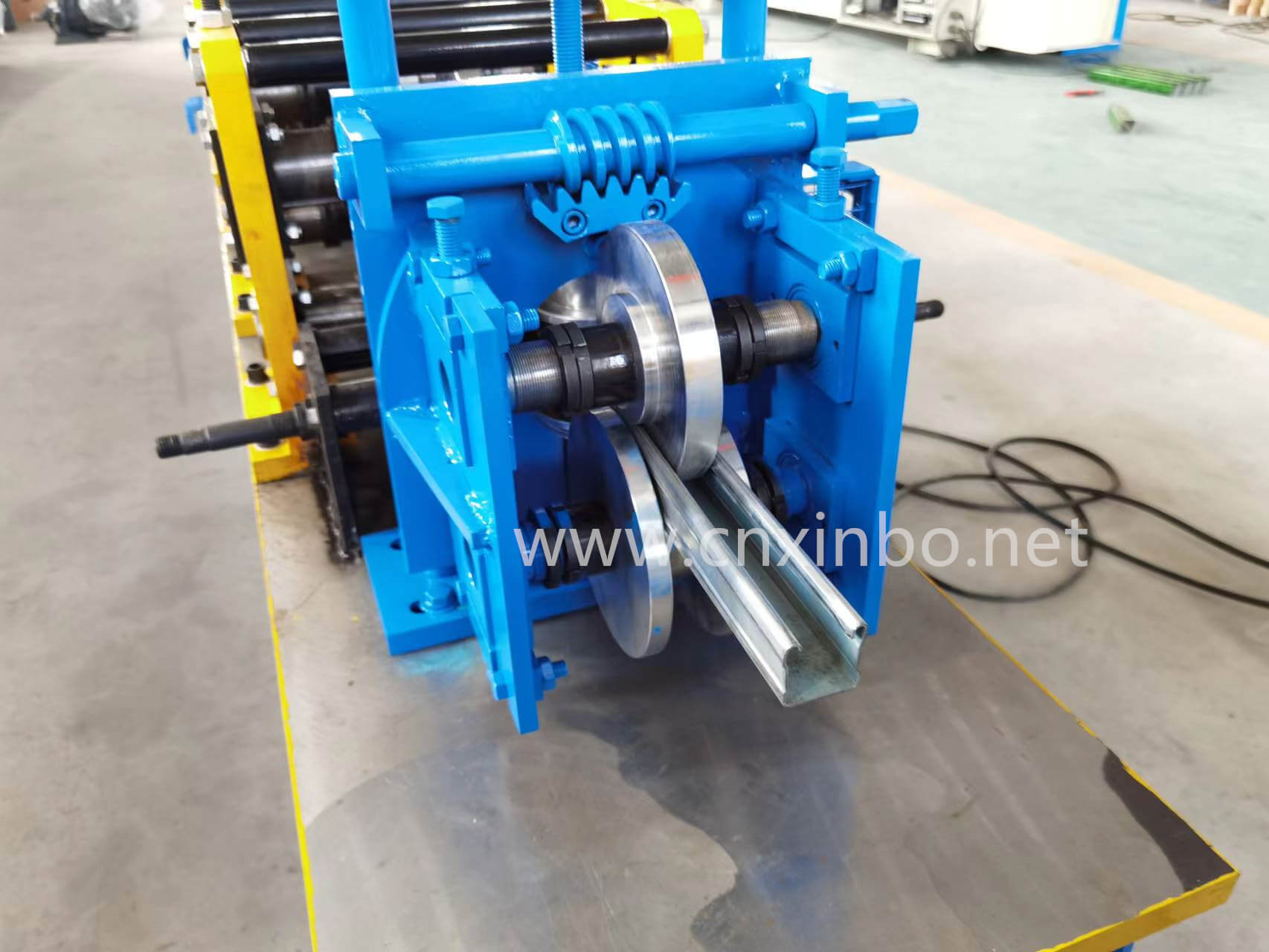

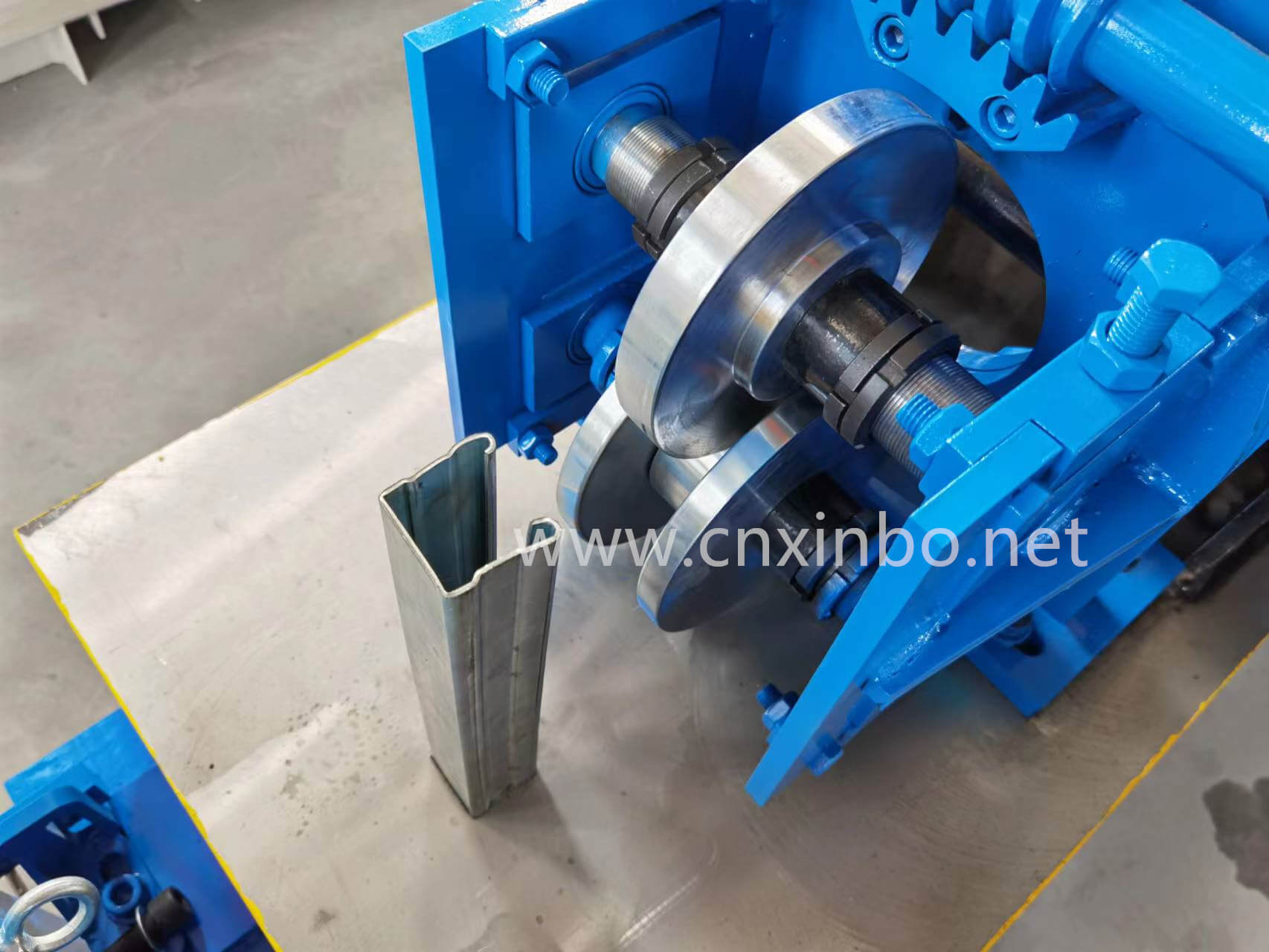

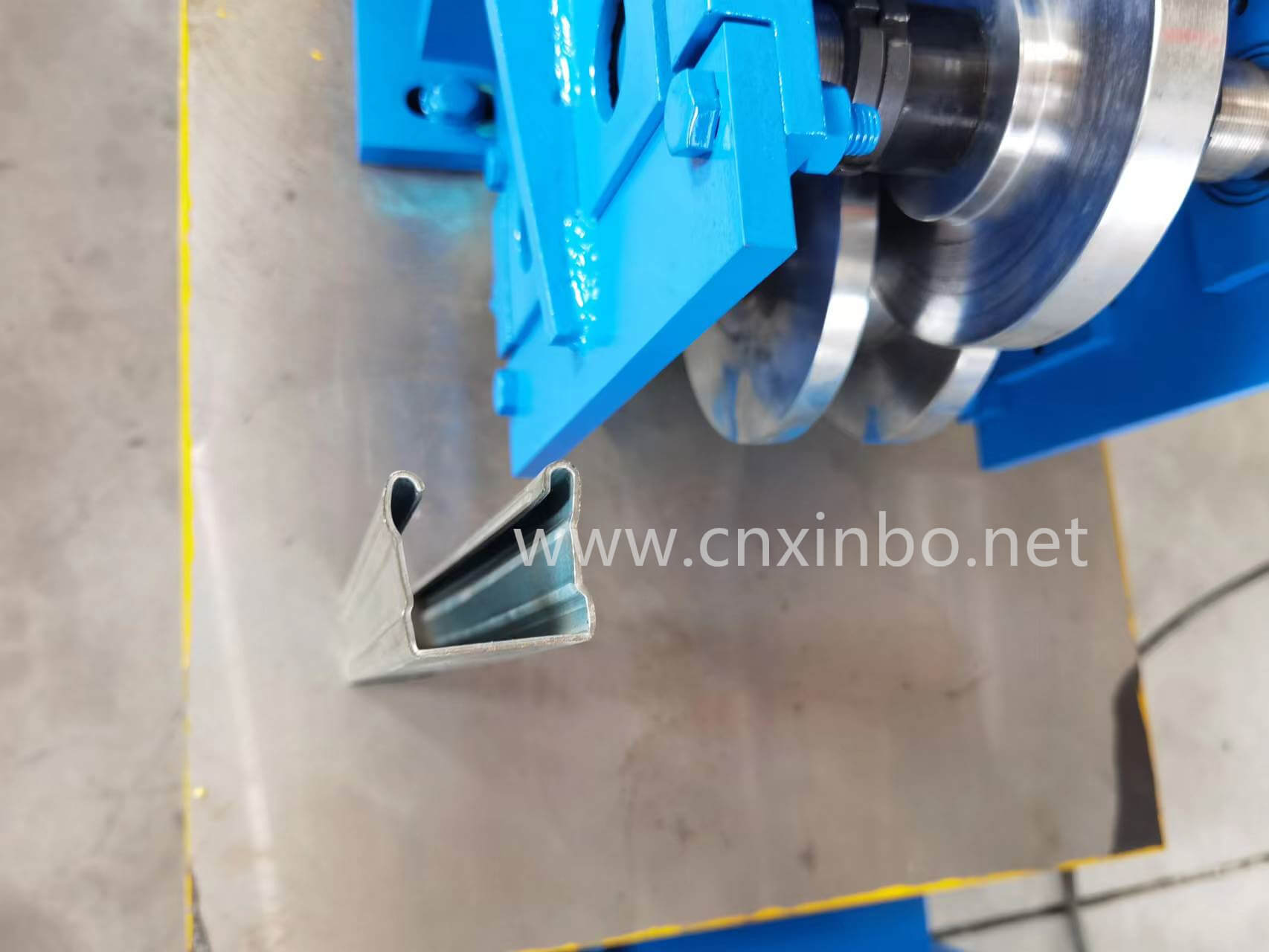

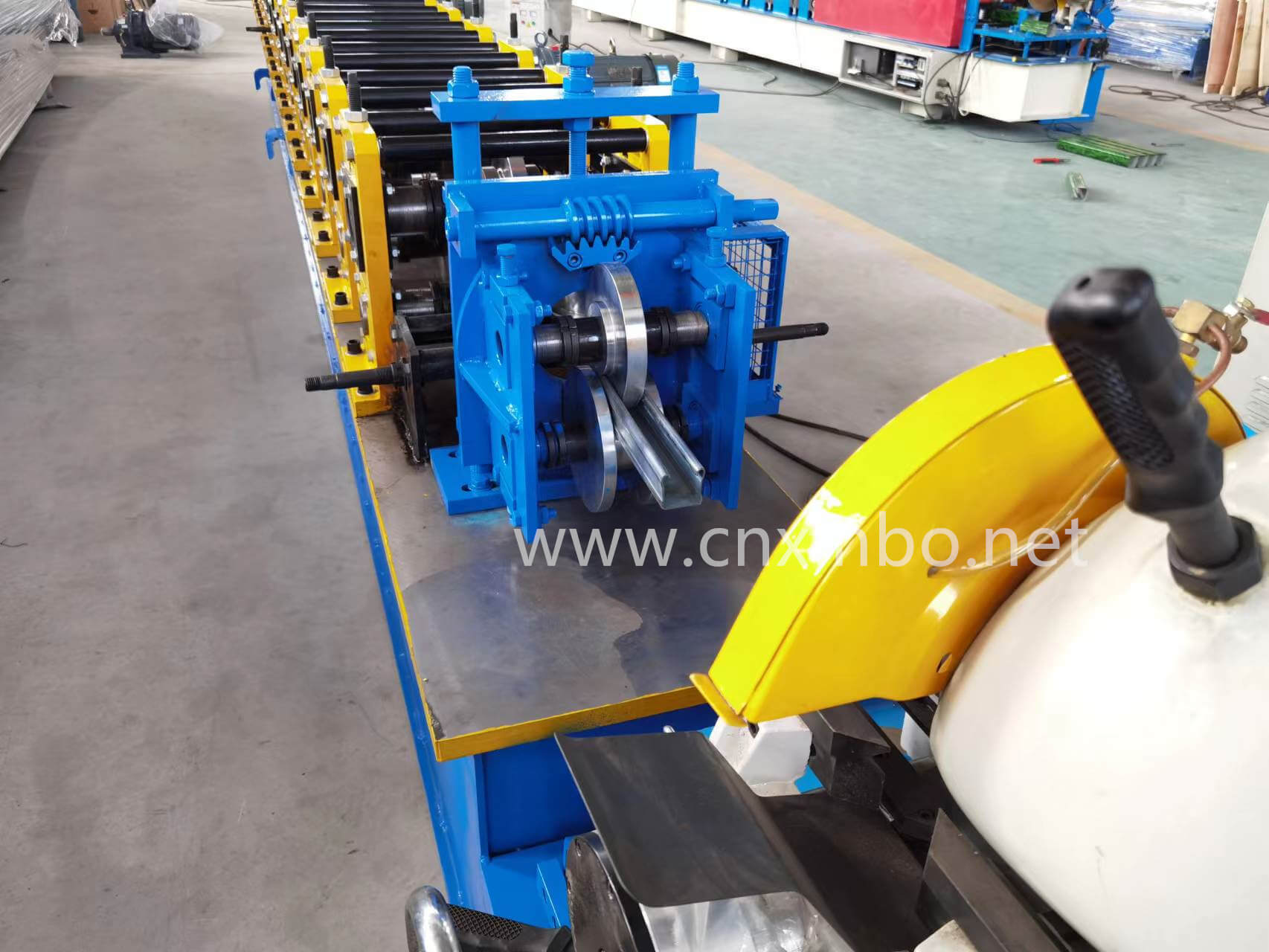

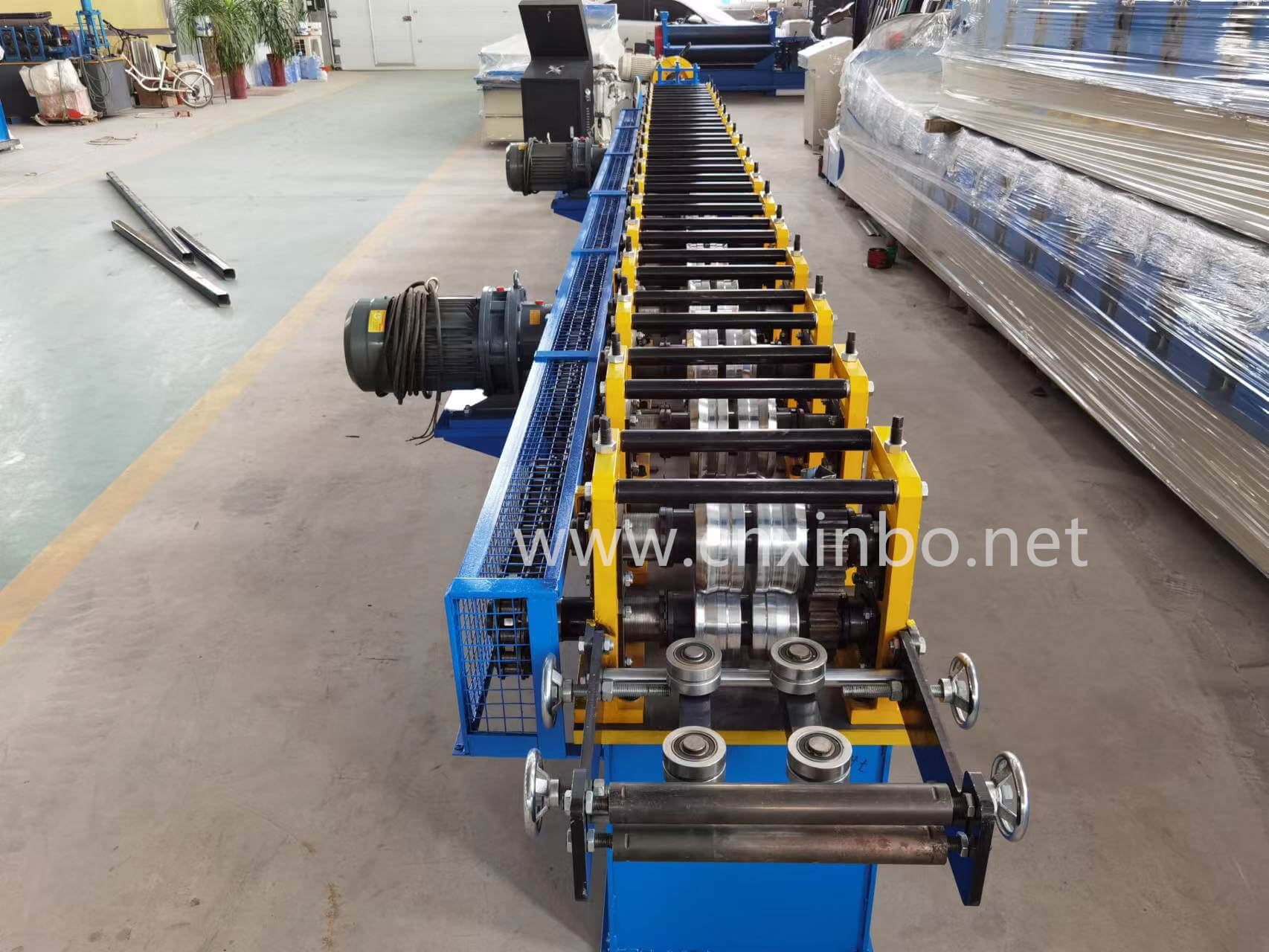

3.Feeding and Forming Part:


4.Packing method:

Nude, with waterproof cloth and stow-wood. Imported computer control system packed with

waterproof cloth and card board.

5.After sales service:

This producing line is maintained free of charge for 18months. When the machine is used in

China, we will install and debug the machine for free; if it is used at abroad, we will send the

professional technician to debug. Buyers should take all the fees for technicians travelling

abroad and wage $100/day.

6.Needed place and workmen:

1)ground-level land

  • ≥5t overhead travelling crane

      3)≥- 14 °С temperature in the working department
      4) space for storing material(4—5different coils)
      5) space for laying the machine(at lease 36m*3.5m)
      6) road for vehicle moving

7)workmen:2, operator and porter

– Shipment within 55 days after receipt of advance payment.
